Acrylamide(79-06-1) MS
Product NameAcrylamide
CAS79-06-1
Molecular FormulaC3H5NO
Molecular Weight71.08
InChIInChI=1S/C3H5NO/c1-2-3(4)5/h2H,1H2,(H2,4,5)
InChIKey HRPVXLWXLXDGHG-UHFFFAOYSA-N
SmilesC(N)(=O)C=C
-

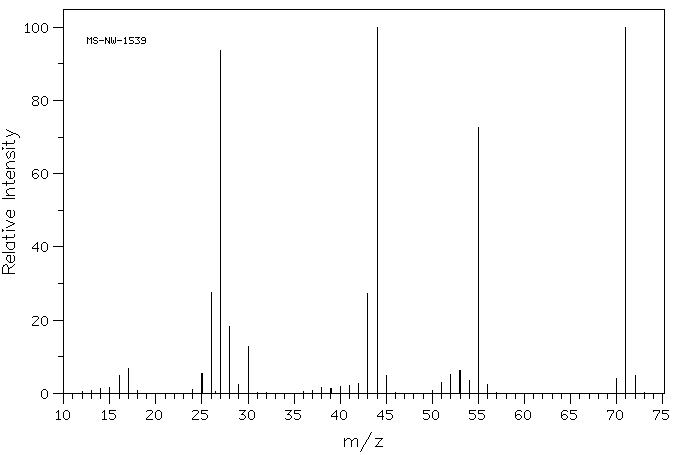

MassMS-NW-1539 acrylamide C3H5NO (Mass of molecular ion: 71)
Source Temperature: 240 °C Sample Temperature: 170 °C Reservoir, 75 eV
14.0 1.2 15.0 1.6 16.0 5.0 17.0 6.8 24.0 1.0 25.0 5.3 26.0 27.5 27.0 93.8 28.0 18.4 29.0 2.4 30.0 12.9 38.0 1.7 39.0 1.4 40.0 2.0 41.0 2.1 42.0 2.7 43.0 27.2 44.0 100.0 45.0 4.9 51.0 3.0 52.0 5.2 53.0 6.2 54.0 3.5 55.0 72.7 56.0 2.5 70.0 4.1 71.0 99.9 72.0 4.9
90 MHz in D2O
-

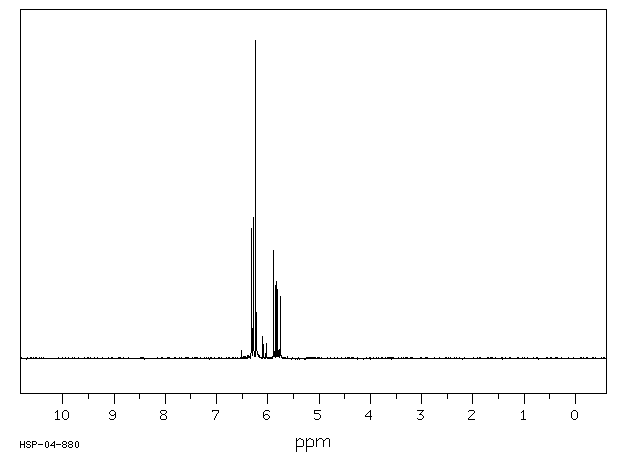

1H NMR 89.56 MHz C3 H5 N O 0.045 g : 0.5 ml D2O acrylamide
Assign. Shift(ppm)
A 6.32 B 6.24 C 5.817 THE SOLVENT SIGNAL REMOVED
Hz ppm Int.583.06 6.511 25 566.06 6.321 410 563.00 6.287 444 558.56 6.237 1000 546.00 6.097 70 540.25 6.033 46 527.50 5.890 339 523.06 5.841 242 520.19 5.809 217 515.75 5.759 194
in D2O

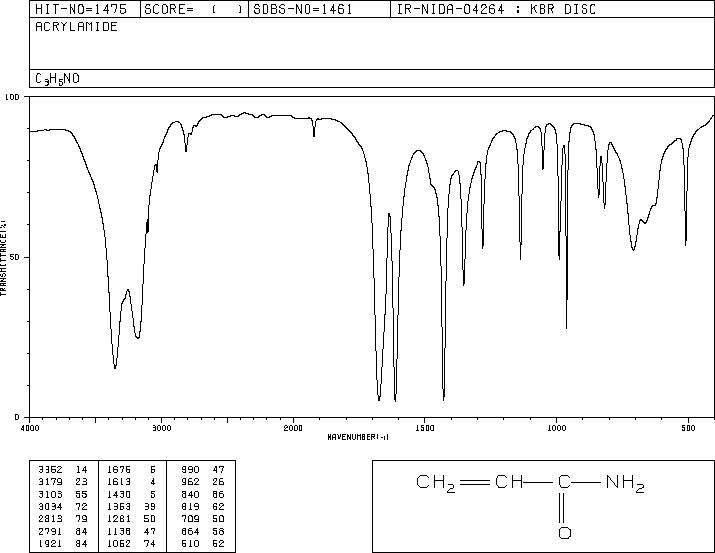

KBr disc

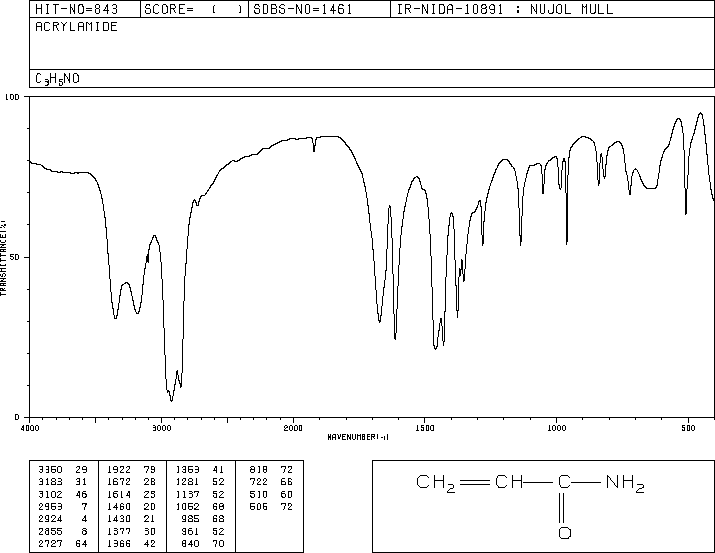

nujol mull
