Diethyl phenylmalonate(83-13-6) Raman
Product NameDiethyl phenylmalonate
CAS83-13-6
Molecular FormulaC13H16O4
Molecular Weight236.26
InChIInChI=1S/C13H16O4/c1-3-16-12(14)11(13(15)17-4-2)10-8-6-5-7-9-10/h5-9,11H,3-4H2,1-2H3
InChIKey FGYDHYCFHBSNPE-UHFFFAOYSA-N
SmilesC(OCC)(=O)C(C1=CC=CC=C1)C(OCC)=O
-

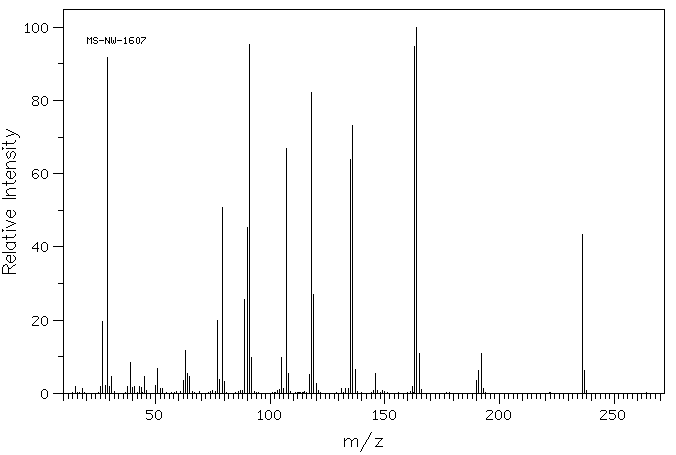

MassMS-NW-1607 diethyl phenylmalonate C13H16O4 (Mass of molecular ion: 236)
Source Temperature: 250 °C Sample Temperature: 180 °C Reservoir, 75 eV
15.0 1.9 18.0 1.4 26.0 1.9 27.0 19.5 28.0 2.2 29.0 91.9 30.0 2.0 31.0 4.5 38.0 1.8 39.0 8.3 40.0 1.6 41.0 1.8 43.0 2.0 44.0 1.6 45.0 4.6 50.0 2.2 51.0 6.7 52.0 1.2 53.0 1.2 62.0 3.5 63.0 11.8 64.0 5.3 65.0 4.5 77.0 19.9 78.0 3.9 79.0 50.8 80.0 3.3 89.0 25.7 90.0 45.3 91.0 95.2 92.0 9.8 104.0 1.0 105.0 9.8 106.0 1.3 107.0 67.0 108.0 5.5 117.0 5.1 118.0 82.1 119.0 26.9 120.0 2.7 131.0 1.2 133.0 1.2 134.0 1.2 135.0 63.9 136.0 73.2 137.0 6.6 146.0 5.4 162.0 1.8 163.0 94.9 164.0 100.0 165.0 11.0 166.0 1.0 190.0 3.5 191.0 6.3 192.0 10.8 193.0 1.4 236.0 43.5 237.0 6.2

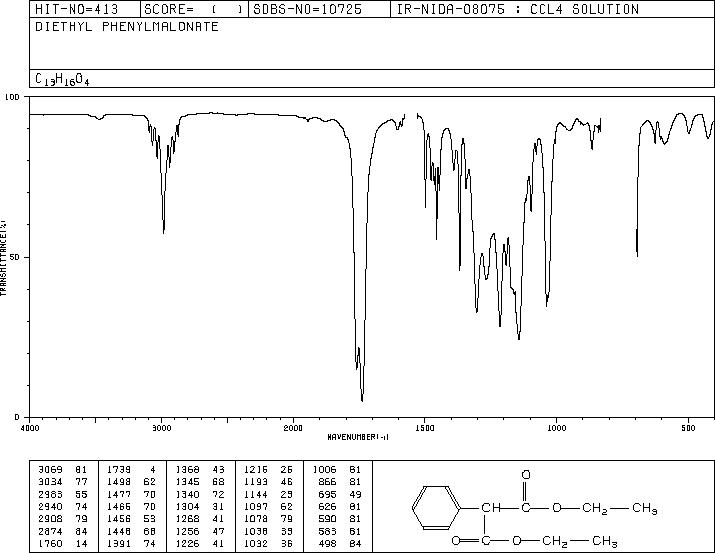

CCl4 solution
liquid film

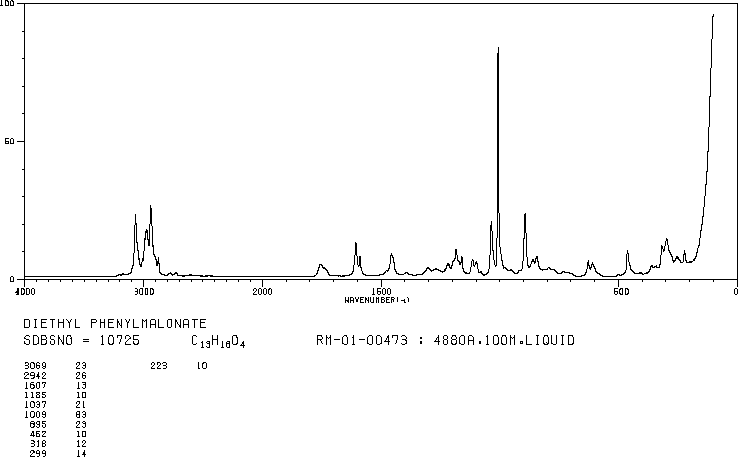

4880 A,100M,liquid
