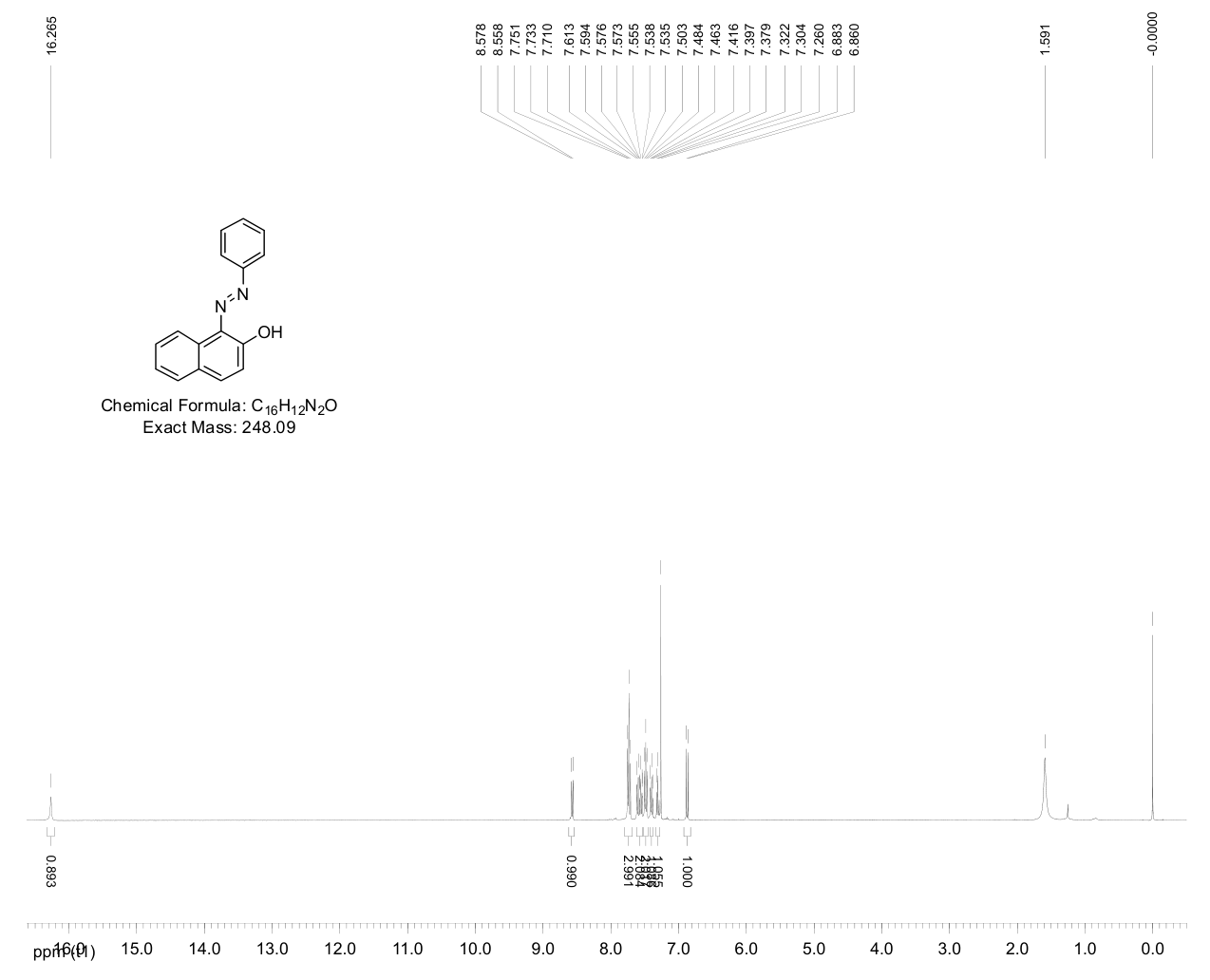

Sudan I(842-07-9) 1H NMR
Molecular FormulaC16H12N2O
Molecular Weight248.28
InChIInChI=1S/C16H12N2O/c19-15-11-10-12-6-4-5-9-14(12)16(15)18-17-13-7-2-1-3-8-13/h1-11,19H
InChIKey MRQIXHXHHPWVIL-UHFFFAOYSA-N
SmilesC1(N=NC2=CC=CC=C2)=C2C(C=CC=C2)=CC=C1O
-

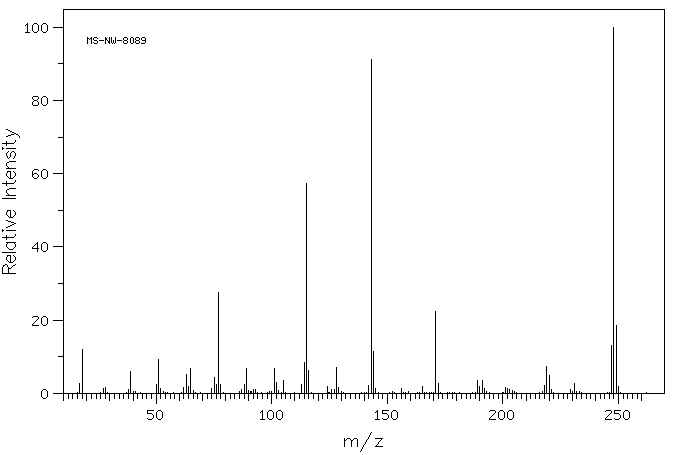

MassMS-NW-8089 sudan I C16H12N2O (Mass of molecular ion: 248)
Source Temperature: 190 °C Sample Temperature: 160 °C Direct, 75 eV
17.0 2.7 18.0 12.1 27.0 1.4 28.0 1.5 38.0 1.1 39.0 5.9 50.0 2.3 51.0 9.3 52.0 1.4 62.0 1.7 63.0 5.1 64.0 2.0 65.0 6.8 74.0 1.3 75.0 4.4 76.0 2.4 77.0 27.6 78.0 2.4 87.0 1.0 88.0 2.4 89.0 6.8 92.0 1.0 93.0 1.0 101.0 6.8 102.0 3.0 105.0 3.4 113.0 2.5 114.0 8.5 115.0 57.3 116.0 6.2 124.0 1.9 126.0 1.0 127.0 1.1 128.0 7.0 129.0 1.5 142.0 2.2 143.0 91.2 144.0 11.5 145.0 1.2 156.0 1.3 165.0 1.9 171.0 22.3 172.0 2.7 189.0 3.4 190.0 1.9 191.0 3.4 192.0 1.4 201.0 1.6 202.0 1.3 203.0 1.1 218.0 2.1 219.0 7.3 220.0 4.9 221.0 1.0 229.0 1.0 231.0 2.7 247.0 13.0 248.0 100.0 249.0 18.5 250.0 1.8

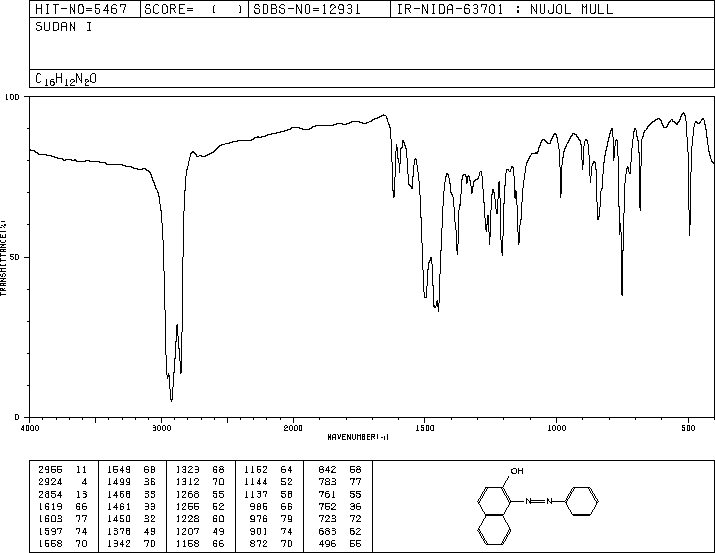

nujol mull
