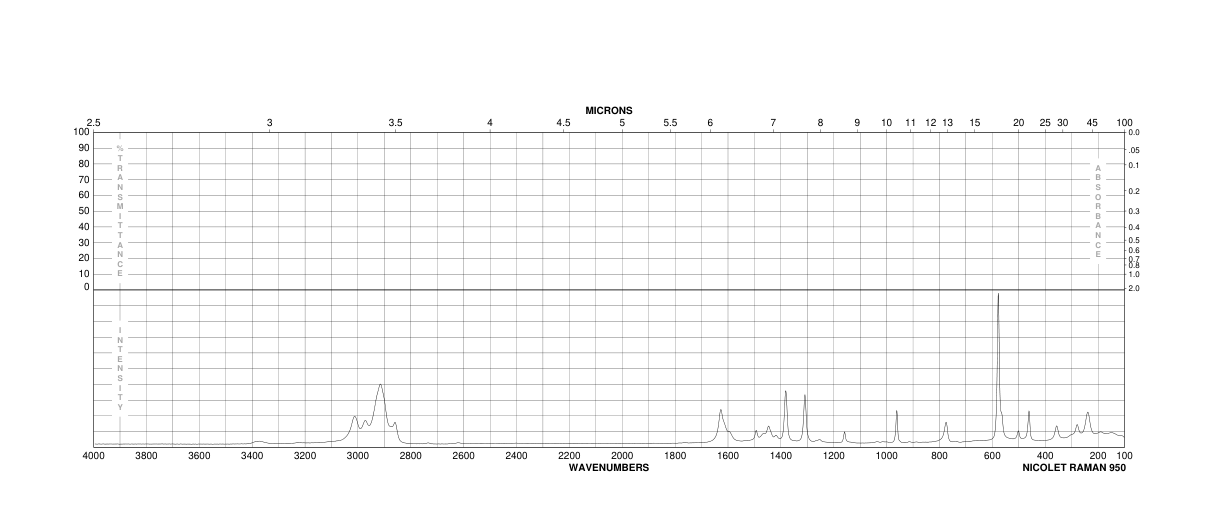

2,4,6-Trimethylaniline(88-05-1) Raman
Product Name2,4,6-Trimethylaniline
CAS88-05-1
Molecular FormulaC9H13N
Molecular Weight135.21
InChIInChI=1S/C9H13N/c1-6-4-7(2)9(10)8(3)5-6/h4-5H,10H2,1-3H3
InChIKey KWVPRPSXBZNOHS-UHFFFAOYSA-N
SmilesC1(N)=C(C)C=C(C)C=C1C
-

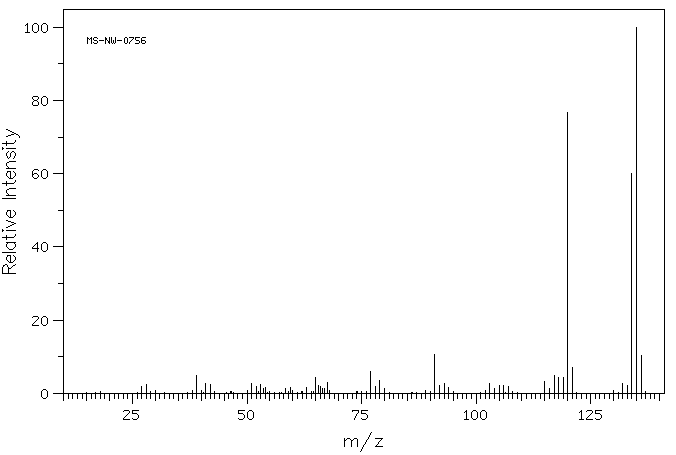

MassMS-NW-0756 2,4,6-trimethylaniline C9H13N (Mass of molecular ion: 135)
Source Temperature: 220 °C Sample Temperature: 150 °C Reservoir, 75 eV
27.0 1.9 28.0 2.3 39.0 4.8 41.0 2.7 42.0 2.4 51.0 2.8 52.0 1.9 53.0 2.4 53.5 1.2 54.0 1.5 58.5 1.4 59.5 1.5 63.0 1.7 65.0 4.4 65.5 2.1 66.0 1.9 66.5 1.2 67.0 1.3 67.5 3.0 77.0 5.9 78.0 1.8 79.0 3.4 80.0 1.2 91.0 10.5 92.0 2.1 93.0 2.8 94.0 1.5 103.0 2.6 104.0 1.3 105.0 2.1 106.0 2.2 107.0 1.8 115.0 3.3 116.0 1.3 117.0 4.9 118.0 4.4 119.0 4.3 120.0 76.7 121.0 7.1 132.0 2.7 133.0 2.1 134.0 60.1 135.0 100.0 136.0 10.4
90 MHz in CDCl3
-

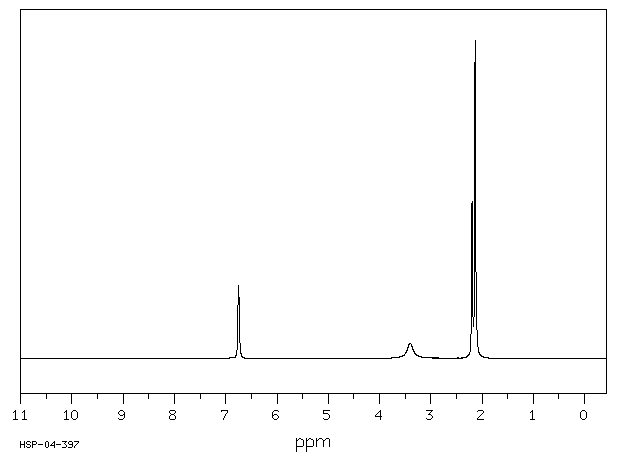

1H NMR 89.56 MHz C9 H13 N 0.04 ml : 0.5 ml CDCl3 2,4,6-trimethylaniline
Assign. Shift(ppm)
A 6.748 B 3.40 C 2.193 D 2.133
Hz ppm Int.604.44 6.749 230 304.56 3.401 48 196.50 2.195 493 191.06 2.134 1000

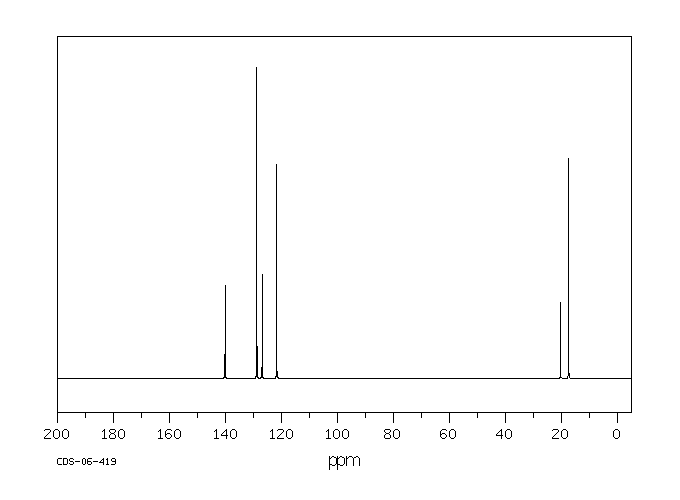

in CDCl3

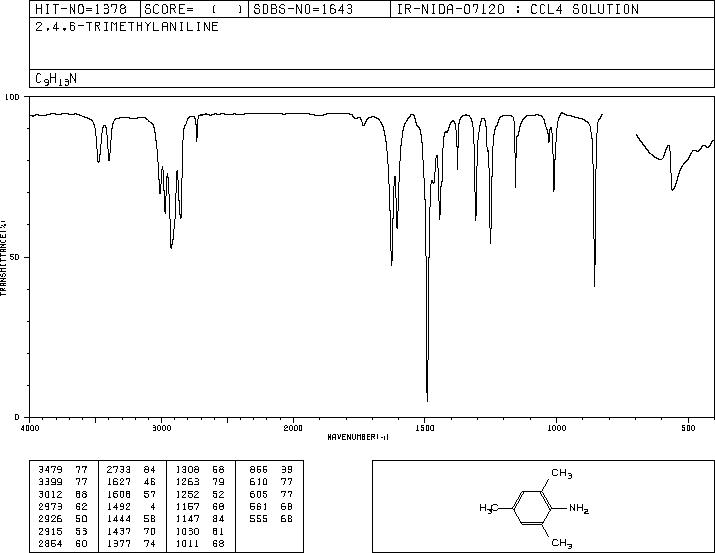

CCl4 solution

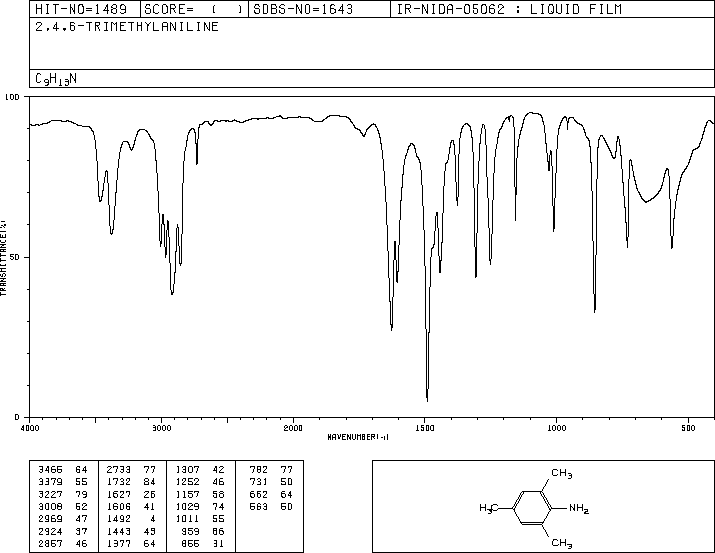

liquid film
