88-10-8

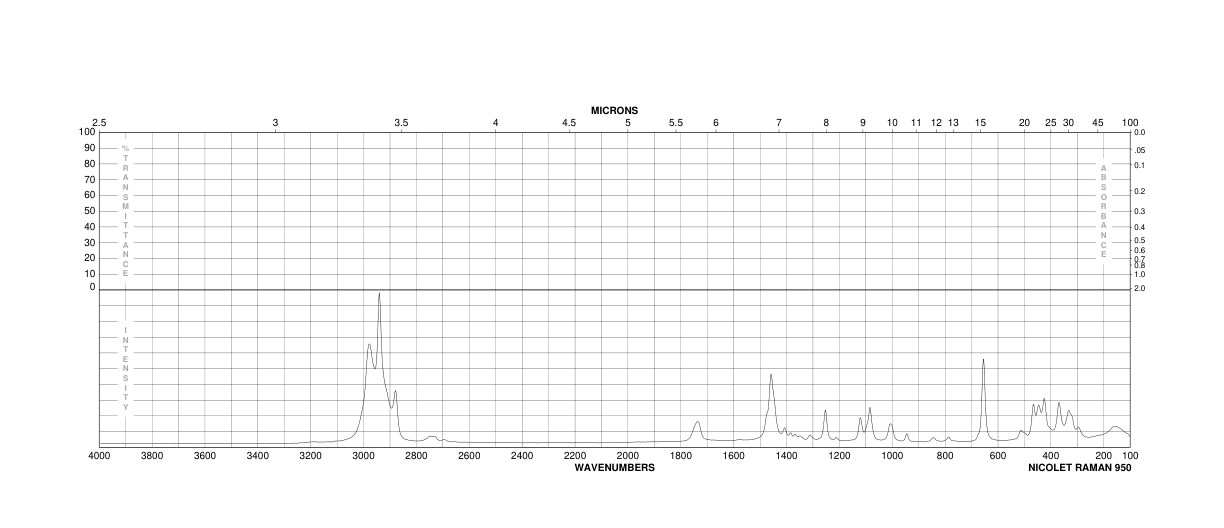

Diethylcarbamyl chloride(88-10-8) Raman

Product NameDiethylcarbamyl chloride

CAS 88-10-8

Molecular FormulaC5H10ClNO

Molecular Weight135.59

InChIInChI=1S/C5H10ClNO/c1-3-7(4-2)5(6)8/h3-4H2,1-2H3

InChIKey OFCCYDUUBNUJIB-UHFFFAOYSA-N

SmilesC(Cl)(=O)N(CC)CC

Request For Quotation

Diethylcarbamyl chloride(88-10-8) Raman

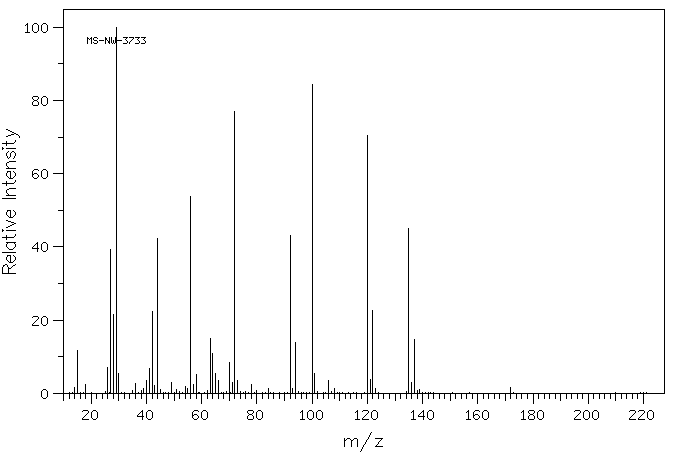

Mass

MS-NW-3733
N,N-diethylcarbamoyl chloride
C5H10ClNO           (Mass of molecular ion:    135)

   Source Temperature: 280 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV

      14.0       1.5
      15.0      11.6
      18.0       2.4
      26.0       7.2
      27.0      39.2
      28.0      21.6
      29.0     100.0
      30.0       5.4
      36.0       2.8
      39.0       1.4
      40.0       3.6
      41.0       6.7
      42.0      22.4
      43.0       2.1
      44.0      42.4
      45.0       1.0
      49.0       2.9
      51.0       1.1
      54.0       1.8
      55.0       1.4
      56.0      53.9
      57.0       2.5
      58.0       5.1
      63.0      15.1
      64.0      11.0
      65.0       5.3
      66.0       3.5
      70.0       8.5
      71.0       2.9
      72.0      77.1
      73.0       3.5
      78.0       2.5
      84.0       1.2
      92.0      43.0
      93.0       1.3
      94.0      14.0
     100.0      84.4
     101.0       5.3
     106.0       3.5
     108.0       1.4
     120.0      70.5
     121.0       3.8
     122.0      22.7
     123.0       1.2
     135.0      45.1
     136.0       3.1
     137.0      14.6
     139.0       1.1
     172.0       1.7

90 MHz in CDCl3

Diethylcarbamyl chloride(88-10-8) Raman

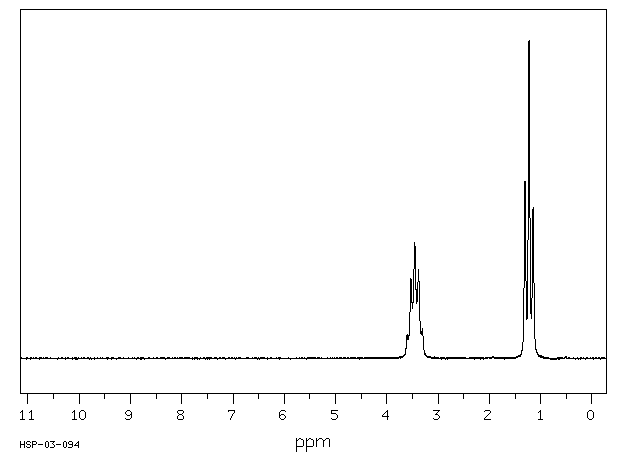

¹H NMR	89.56 MHz
C₅ H₁₀ Cl N O	0.04 ml : 0.5 ml CDCl₃
N,N-diethylcarbamoyl chloride

    Assign.     Shift(ppm)

      A     *1      3.46
      B     *1      3.44
      C             1.23

     Hz     ppm     Int.

    322.69   3.604     75
    316.00   3.529    250
    309.25   3.453    366
    302.88   3.382    280
    298.31   3.331     78
    297.88   3.327     78
    296.13   3.307     94
    295.81   3.303     94
    116.88   1.306    558
    109.75   1.226   1000
    102.56   1.146    474
     96.69   1.080     26

in CDCl3
