2,5-Diaminobenzenesulfonic acid(88-45-9) MS
Product Name2,5-Diaminobenzenesulfonic acid
CAS88-45-9
Molecular FormulaC6H8N2O3S
Molecular Weight188.2
InChIInChI=1S/C6H8N2O3S/c7-4-1-2-5(8)6(3-4)12(9,10)11/h1-3H,7-8H2,(H,9,10,11)
InChIKey HEAHMJLHQCESBZ-UHFFFAOYSA-N
SmilesC1(S(O)(=O)=O)=CC(N)=CC=C1N
-

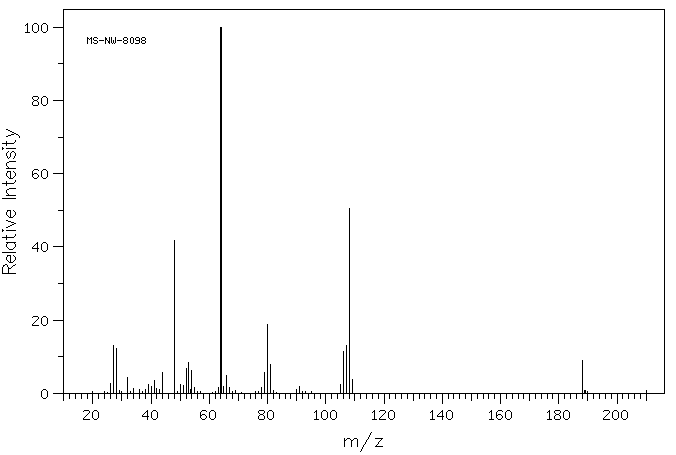

MassMS-NW-8098 2,5-diaminobenzenesulfonic acid C6H8N2O3S (Mass of molecular ion: 188)
Source Temperature: 200 °C Sample Temperature: 250 °C Direct, 75 eV
26.0 2.8 27.0 13.2 28.0 12.2 32.0 4.2 34.0 1.3 36.0 1.1 38.0 1.1 39.0 2.5 40.0 2.0 41.0 3.5 42.0 1.4 43.0 1.0 44.0 5.6 48.0 41.7 50.0 2.3 51.0 2.1 52.0 6.8 53.0 8.3 53.5 1.1 54.0 6.3 55.0 1.6 63.0 1.7 64.0 100.0 65.0 1.9 66.0 5.0 67.0 1.7 78.0 1.5 79.0 5.6 80.0 18.7 81.0 7.9 90.0 1.0 91.0 1.8 105.0 2.5 106.0 11.3 107.0 13.0 108.0 50.4 109.0 3.8 188.0 8.9

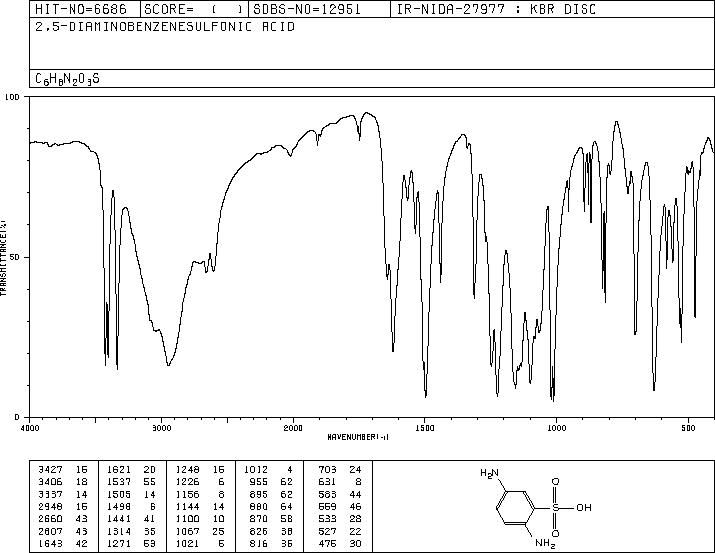

KBr disc

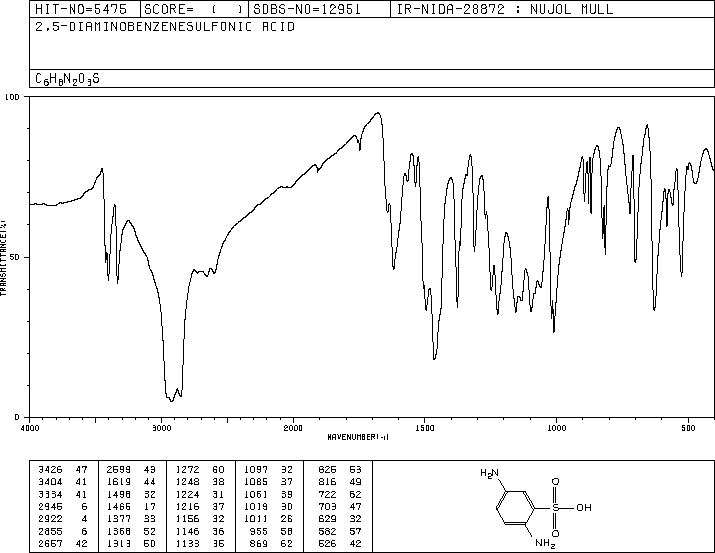

nujol mull
