Dimethylglyoxime(95-45-4) MS
Product NameDimethylglyoxime
CAS95-45-4
Molecular FormulaC4H8N2O2
Molecular Weight116.12
InChIInChI=1S/C4H8N2O2/c1-3(5-7)4(2)6-8/h7-8H,1-2H3
InChIKey JGUQDUKBUKFFRO-UHFFFAOYSA-N
SmilesCC(=NO)C(=NO)C
-

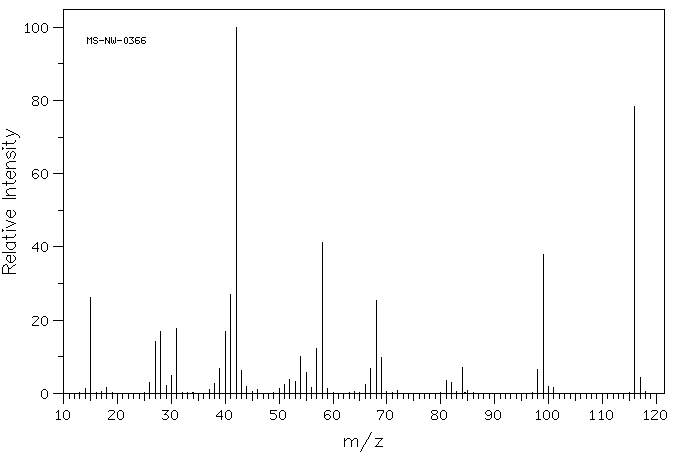

MassMS-NW-0366 dimethylglyoxime C4H8N2O2 (Mass of molecular ion: 116)
Source Temperature: 160 °C Sample Temperature: 120 °C Direct, 75 eV
14.0 1.4 15.0 26.3 18.0 1.6 26.0 3.0 27.0 14.1 28.0 16.9 29.0 2.2 30.0 4.9 31.0 17.7 37.0 1.0 38.0 2.6 39.0 6.7 40.0 16.8 41.0 27.1 42.0 100.0 43.0 6.2 44.0 1.8 46.0 1.0 50.0 1.3 51.0 2.5 52.0 3.7 53.0 3.3 54.0 10.2 55.0 5.8 56.0 1.7 57.0 12.2 58.0 41.2 59.0 1.2 66.0 2.5 67.0 6.7 68.0 25.4 69.0 9.8 81.0 3.6 82.0 3.0 84.0 7.2 98.0 6.4 99.0 38.0 100.0 2.0 101.0 1.5 116.0 78.3 117.0 4.2

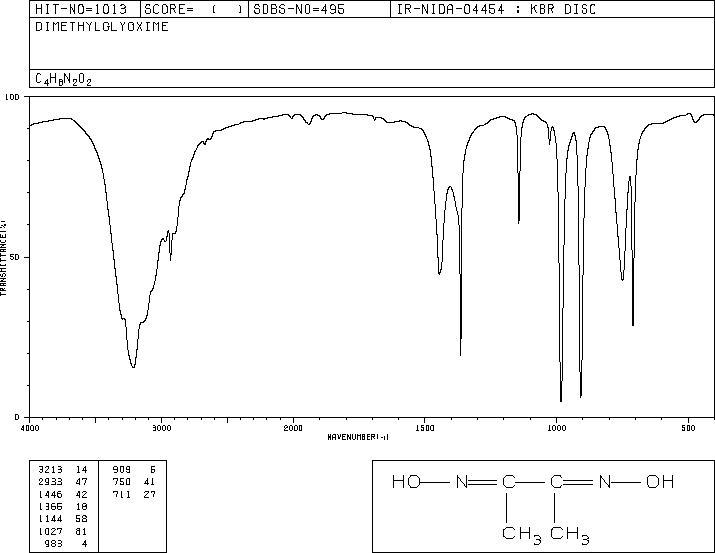

KBr disc

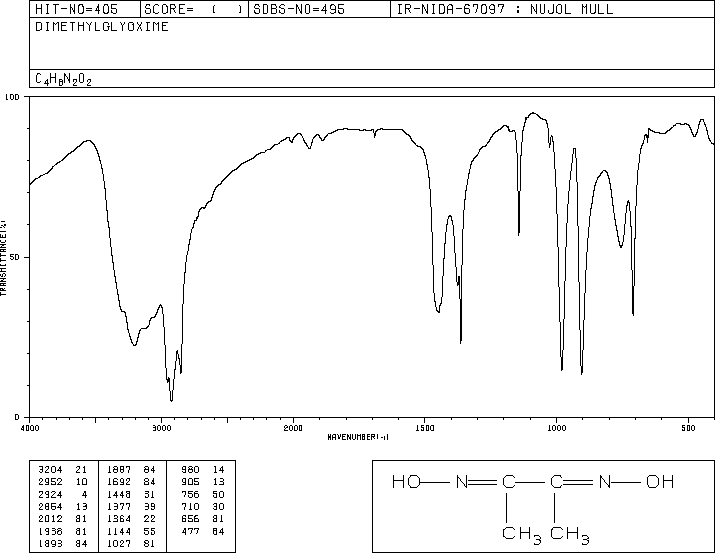

nujol mull
