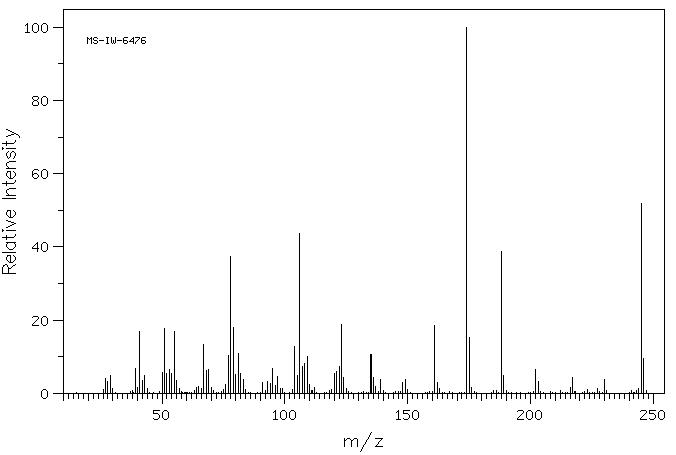

Mass

MS-IW-6476
trans-2'-(2,4-dimethylcyclohexylidene)isonicotinohydrazide
C14H19N3O           (Mass of molecular ion:    245)

   Source Temperature: 170 °C
   Sample Temperature: 160 °C
   Direct, 75 eV

      26.0       1.0
      27.0       4.0
      28.0       3.2
      29.0       4.9
      30.0       1.3
      39.0       6.9
      40.0       1.5
      41.0      16.9
      42.0       3.4
      43.0       4.8
      44.0       1.3
      50.0       5.6
      51.0      17.8
      52.0       5.4
      53.0       6.5
      54.0       5.3
      55.0      17.0
      56.0       3.5
      57.0       1.4
      64.0       1.7
      65.0       2.0
      66.0       1.2
      67.0      13.3
      68.0       6.3
      69.0       6.6
      70.0       1.6
      75.0       1.0
      76.0       2.4
      77.0      10.4
      78.0      37.5
      79.0      17.9
      80.0       5.2
      81.0      11.0
      82.0       5.5
      83.0       3.9
      84.0       1.1
      91.0       3.1
      93.0       3.2
      94.0       2.8
      95.0       6.9
      96.0       2.1
      97.0       4.7
      98.0       1.3
      99.0       1.3
     103.0       1.0
     104.0      12.7
     105.0       4.8
     106.0      43.7
     107.0       7.4
     108.0       8.2
     109.0      10.2
     110.0       2.5
     112.0       1.5
     119.0       1.0
     120.0       5.3
     121.0       6.0
     122.0       7.4
     123.0      18.7
     124.0       4.3
     125.0       1.3
     135.0      10.7
     136.0       4.2
     137.0       1.9
     139.0       3.7
     148.0       2.9
     149.0       3.9
     150.0       1.1
     161.0      18.6
     162.0       3.0
     163.0       1.4
     174.0     100.0
     175.0      15.3
     176.0       1.5
     188.0      38.8
     189.0       4.9
     202.0       6.4
     203.0       3.2
     216.0       1.5
     217.0       4.4
     223.0       1.1
     227.0       1.2
     230.0       3.9
     244.0       1.4
     245.0      51.8
     246.0       9.6
