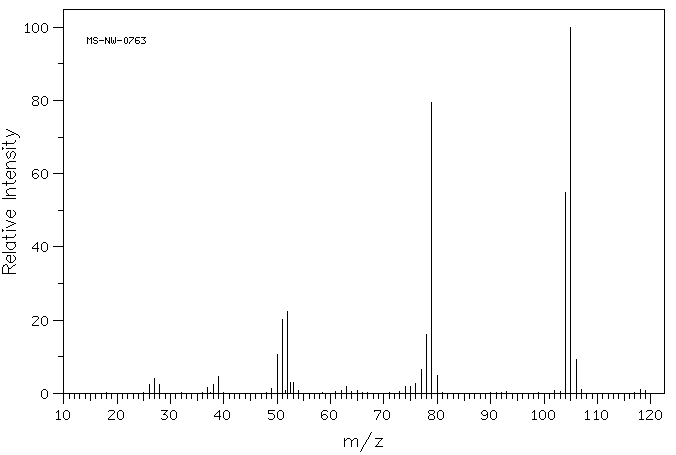

Mass

MS-NW-0763
2-vinylpyridine
C7H7N               (Mass of molecular ion:    105)

   Source Temperature: 220 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      26.0       2.5
      27.0       4.1
      28.0       2.4
      37.0       1.7
      38.0       2.4
      39.0       4.7
      49.0       1.2
      50.0      10.7
      51.0      20.1
      52.0      22.4
      52.5       3.1
      53.0       3.1
      63.0       1.8
      74.0       1.9
      75.0       1.8
      76.0       2.6
      77.0       6.6
      78.0      16.0
      79.0      79.6
      80.0       4.8
     104.0      55.0
     105.0     100.0
     106.0       9.3
     107.0       1.0
     118.0       1.1

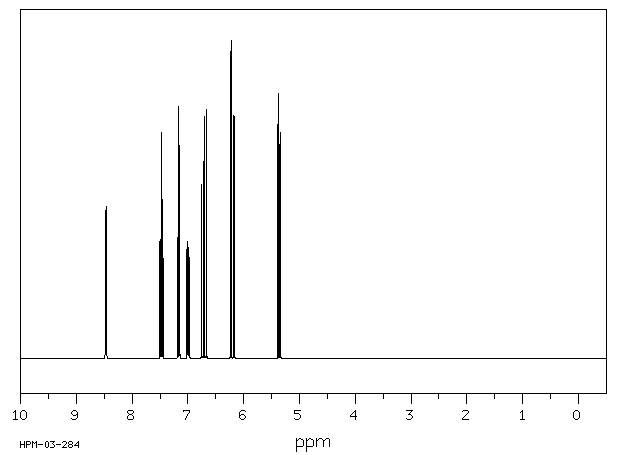

Parameter ppm Hz D(A) 8.470 D(B) 6.996 D(C) 7.477 D(D) 7.165 D(E) 6.712 D(F) 5.368 D(G) 6.205 J(A,B) 4.79 J(A,C) 1.87 J(A,D) 1.01 J(A,E) 0.24 J(A,F) 0.0 J(A,G) 0.0 J(B,C) 7.54 J(B,D) 1.15 J(B,E) -0.24 J(B,F) 0.22 J(B,G) 0.22 J(C,D) 7.83 J(C,E) 0.25 J(C,F) 0.03 J(C,G) 0.03 J(D,E) -0.25 J(D,F) 0.24 J(D,G) 0.07 J(E,F) 10.77 J(E,G) 17.44 J(F,G) 1.66 ROWBOTHAM,J.B. & SCHAEFER,T. CAN.J.CHEM. 52, 136 (1974) J(C,F):LESS THAN 0.03HZ. J(C,G):LESS THAN 0.03HZ. J(D,G):LESS THAN 0.07HZ.

     Hz     ppm     Int.

   2544.81   8.483    495
   2543.84   8.479    578
   2543.01   8.477    585
   2542.02   8.473    534
   2540.05   8.467    530
   2539.05   8.463    596
   2538.23   8.461    592
   2537.23   8.457    521
   2251.99   7.507    379
   2250.11   7.500    378
   2244.30   7.481    795
   2242.42   7.475    787
   2236.64   7.455    498
   2234.76   7.449    490
   2154.26   7.181    555
   2153.26   7.178    943
   2152.26   7.174    579
   2146.42   7.155    476
   2145.45   7.151    801
   2144.42   7.148    482
   2105.41   7.018    468
   2104.32   7.014    459
   2100.59   7.002    475
   2099.50   6.998    478
   2097.89   6.993    460
   2096.80   6.989    423
   2093.10   6.977    419
   2091.99   6.973    401
   2028.25   6.761    620
   2017.54   6.725    648
   2010.81   6.703    778
   2000.10   6.667    815
   1870.57   6.235    991
   1868.90   6.230   1000
   1853.13   6.177    796
   1851.46   6.172    788
   1616.54   5.388    878
   1614.86   5.383    857
   1605.82   5.353    822
   1604.15   5.347    811
