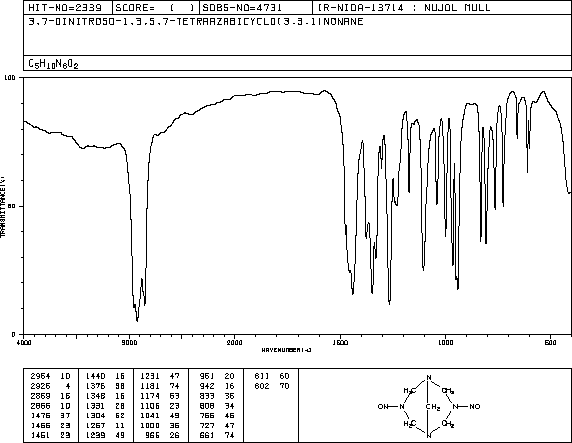

發(fā)泡劑H(101-25-7)紅外圖譜(IR1)
分子式:C5H10N6O2
分子量: 186.17
InChI:InChI=1S/C5H10N6O2/c12-6-10-2-8-1-9(4-10)5-11(3-8)7-13/h1-5H2
InChIKey: MWRWFPQBGSZWNV-UHFFFAOYSA-N
Smiles:N12CN(CN(N=O)C1)CN(N=O)C2
-

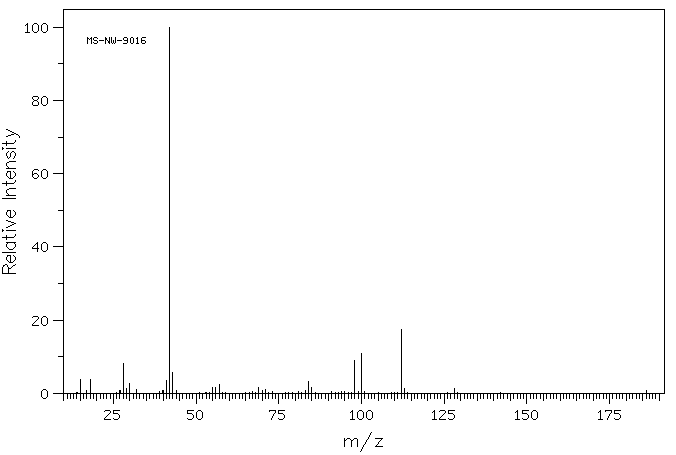

Mass
MS-NW-9016
3,7-dinitroso-1,3,5,7-tetraazabicyclo(3.3.1)nonane
C5H10N6O2 (Mass of molecular ion: 186)
Source Temperature: 200 °C
Sample Temperature: 130 °C
Direct, 75 eV
15.0 3.9
18.0 3.7
28.0 8.2
29.0 1.2
30.0 2.8
32.0 1.1
41.0 3.6
42.0 100.0
43.0 5.6
55.0 1.5
56.0 1.6
57.0 2.4
69.0 1.7
71.0 1.1
84.0 3.2
85.0 1.6
98.0 9.1
100.0 10.9
112.0 17.4
113.0 1.2
128.0 1.4
