3-氨基巴豆腈(1118-61-2)紅外圖譜(IR2)
InChI:InChI=1S/C4H6N2/c1-4(6)2-3-5/h2H,6H2,1H3
InChIKey: DELJOESCKJGFML-UHFFFAOYSA-N
Smiles:C(#N)C=C(N)C
-

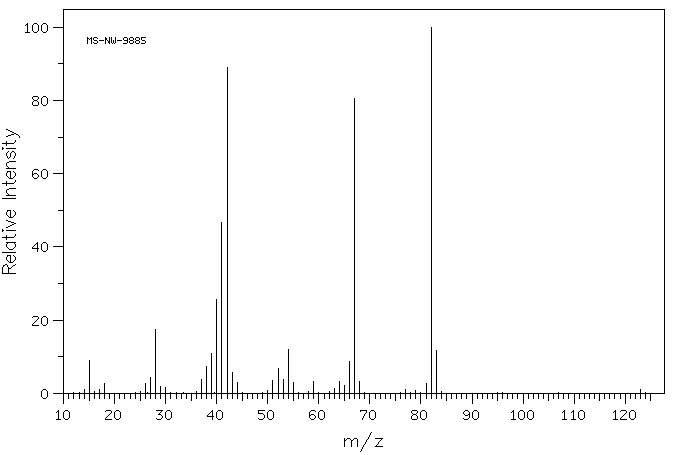

Mass
MS-NW-9885
3-aminocrotononitrile
C4H6N2 (Mass of molecular ion: 82)
Source Temperature: 260 °C
Sample Temperature: 150 °C
Reservoir, 75 eV
14.0 1.0
15.0 8.9
17.0 1.0
18.0 2.6
26.0 2.7
27.0 4.4
28.0 17.5
29.0 1.8
30.0 1.7
37.0 3.7
38.0 7.3
39.0 10.8
40.0 25.7
41.0 46.7
42.0 89.1
43.0 5.8
44.0 3.0
51.0 3.6
52.0 6.8
53.0 3.7
54.0 12.1
55.0 3.0
59.0 3.3
63.0 1.3
64.0 3.2
65.0 2.1
66.0 8.7
67.0 80.5
68.0 3.3
77.0 1.0
81.0 2.8
82.0 100.0
83.0 11.7
123.0 1.0
