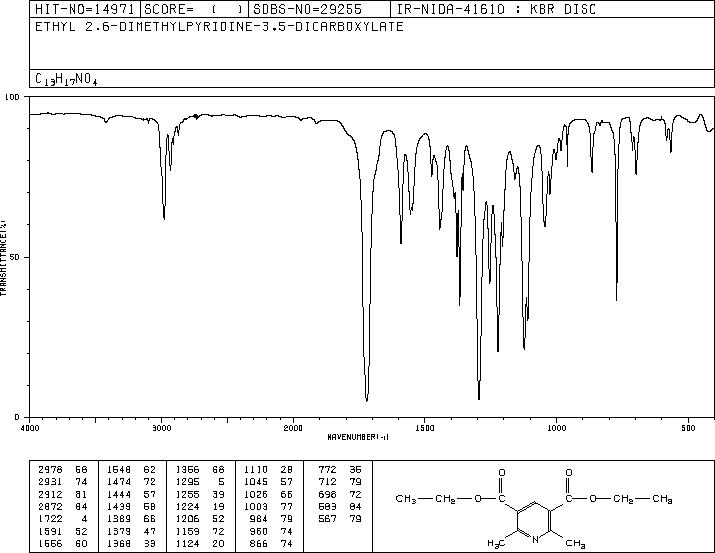

2,6-二甲基吡啶-3,5-二甲酸二乙酯(1149-24-2)紅外圖譜(IR2)
分子式:C13H17NO4
分子量: 251.28
InChI:
InChIKey:
Smiles:
-

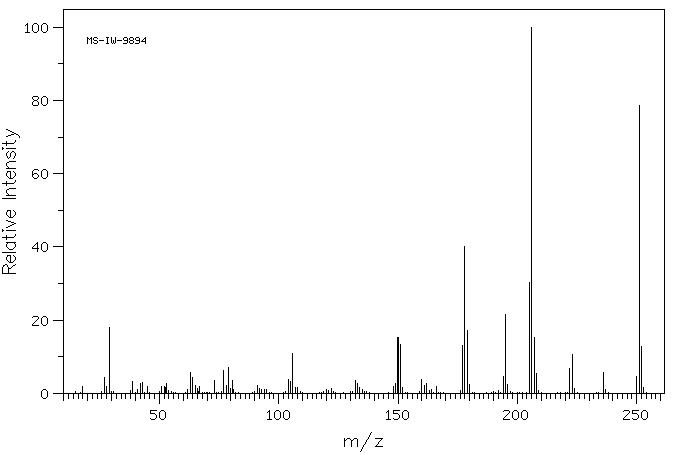

Mass
MS-IW-9894
diethyl 2,6-dimethyl-3,5-pyridinedicarboxylate
C13H17NO4 (Mass of molecular ion: 251)
Source Temperature: 130 °C
Sample Temperature: 110 °C
Direct, 75 eV
18.0 1.9
27.0 4.4
28.0 1.9
29.0 18.1
39.0 3.3
41.0 1.1
42.0 2.8
43.0 3.1
45.0 1.9
51.0 2.0
52.0 1.9
52.5 1.6
53.0 2.8
62.0 1.1
63.0 5.6
64.0 4.4
65.0 2.2
66.0 1.4
67.0 2.0
73.0 3.4
77.0 6.3
78.0 2.2
79.0 7.0
80.0 1.3
80.5 3.4
81.0 1.0
91.0 2.2
92.0 1.3
93.0 1.0
94.0 1.1
95.0 1.1
104.0 3.8
105.0 3.3
106.0 11.0
107.0 1.7
108.0 1.5
120.0 1.0
122.0 1.2
132.0 3.4
133.0 2.7
134.0 1.6
135.0 1.0
148.0 1.9
149.0 2.8
150.0 15.2
151.0 13.3
152.0 1.5
160.0 3.7
161.0 2.1
162.0 2.6
164.0 1.0
166.0 1.9
177.0 13.0
178.0 40.2
179.0 17.3
180.0 2.4
194.0 4.7
195.0 21.6
196.0 2.4
205.0 30.3
206.0 100.0
207.0 15.2
208.0 5.5
222.0 6.7
223.0 10.7
224.0 1.4
236.0 5.7
237.0 1.0
250.0 4.7
251.0 78.6
252.0 12.8
253.0 1.6
