四氯苯二甲酸酐(117-08-8)質譜(MS)
InChI:InChI=1S/C8Cl4O3/c9-3-1-2(8(14)15-7(1)13)4(10)6(12)5(3)11
InChIKey: AUHHYELHRWCWEZ-UHFFFAOYSA-N
Smiles:C1(=O)C2=C(C(Cl)=C(Cl)C(Cl)=C2Cl)C(=O)O1
-

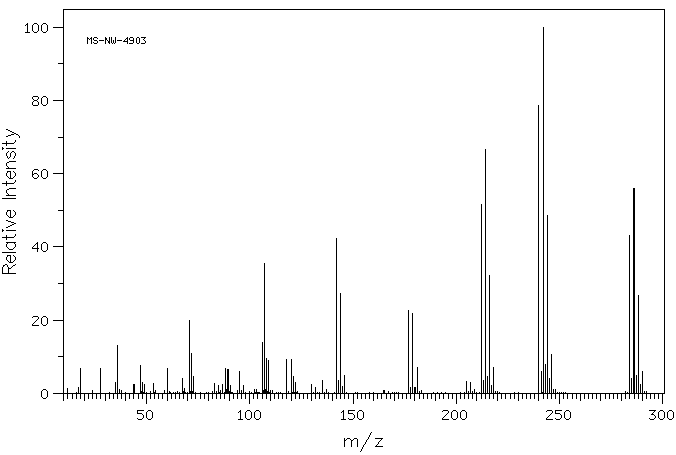

Mass
MS-NW-4903
tetrachlorophthalic anhydride
C8Cl4O3 (Mass of molecular ion: 284)
Source Temperature: 170 °C
Sample Temperature: 120 °C
Direct, 75 eV
12.0 1.2
17.0 1.5
18.0 6.9
28.0 6.8
35.0 3.1
36.0 13.0
37.0 1.0
44.0 2.3
47.0 7.5
48.0 2.9
49.0 2.4
53.5 2.6
60.0 6.9
67.5 4.1
68.5 1.4
71.0 19.8
72.0 10.9
73.0 4.7
83.0 2.6
85.0 2.1
87.0 2.3
88.5 6.8
89.0 1.1
89.5 6.5
90.5 2.1
95.0 6.1
97.0 2.1
102.5 1.0
103.5 1.0
106.0 13.9
107.0 35.5
107.5 1.1
108.0 9.6
109.0 9.1
118.0 9.2
120.0 9.2
121.0 4.5
122.0 3.0
130.0 2.3
132.0 1.5
135.0 3.4
137.0 1.1
142.0 42.3
143.0 3.4
144.0 27.4
145.0 2.0
146.0 4.8
177.0 22.6
178.0 1.7
179.0 21.8
180.0 1.6
181.0 7.2
205.0 3.2
207.0 3.1
209.0 1.1
212.0 51.7
213.0 3.6
214.0 66.5
215.0 4.5
216.0 32.2
217.0 2.2
218.0 7.0
240.0 78.6
241.0 6.1
242.0 100.0
243.0 8.0
244.0 48.7
245.0 4.0
246.0 10.7
247.0 1.0
248.0 1.0
284.0 43.1
285.0 4.0
286.0 56.0
287.0 5.0
288.0 26.7
289.0 2.5
290.0 6.0
