2,4,5,6-四氟-1,3-苯二胺(1198-64-7)質(zhì)譜(MS)
InChI:InChI=1S/C6H4F4N2/c7-1-2(8)6(12)4(10)3(9)5(1)11/h11-12H2
InChIKey: FVFYRXJKYAVFSB-UHFFFAOYSA-N
Smiles:C1(N)=C(F)C(F)=C(N)C(F)=C1F
-

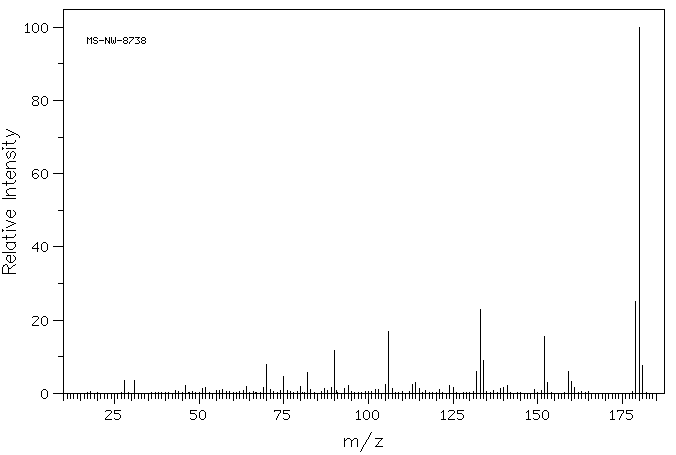

Mass
MS-NW-8738
2,3,5,6-tetrafluoro-p-phenylenediamine
C6H4F4N2 (Mass of molecular ion: 180)
Source Temperature: 280 °C
Sample Temperature: 150 °C
Reservoir, 75 eV
28.0 3.4
31.0 3.5
46.0 2.1
51.0 1.3
52.0 1.5
57.0 1.0
64.0 1.8
69.0 1.5
70.0 7.8
71.0 1.1
75.0 4.5
80.0 2.0
82.0 5.7
83.0 1.1
87.0 1.3
89.0 1.5
90.0 11.8
93.0 1.2
94.0 2.1
102.0 1.1
103.0 1.1
105.0 2.3
106.0 16.8
107.0 1.4
113.0 2.4
114.0 2.9
115.0 1.4
121.0 1.0
124.0 2.1
125.0 1.7
132.0 5.9
133.0 23.0
134.0 9.1
139.0 1.3
140.0 1.7
141.0 2.2
149.0 1.1
152.0 15.6
153.0 3.1
159.0 5.9
160.0 3.2
161.0 1.5
179.0 25.1
180.0 100.0
181.0 7.5
