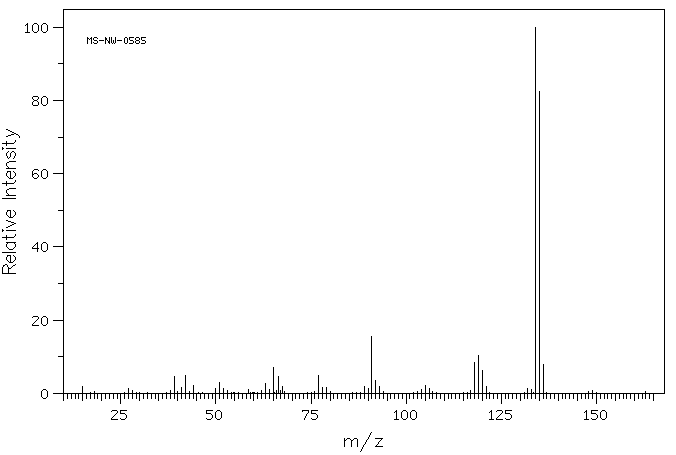

Mass

MS-NW-0585
N,N-dimethyl-m-toluidine
C9H13N              (Mass of molecular ion:    135)

   Source Temperature: 280 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV

      15.0       2.0
      27.0       1.3
      39.0       4.5
      41.0       1.5
      42.0       5.0
      44.0       2.2
      50.0       1.2
      51.0       3.1
      52.0       1.3
      58.5       1.0
      63.0       2.8
      64.0       1.0
      65.0       7.1
      66.5       4.6
      67.5       2.0
      77.0       4.8
      78.0       1.7
      79.0       1.5
      89.0       2.0
      90.0       1.2
      91.0      15.6
      92.0       3.4
      93.0       1.9
     104.0       1.0
     105.0       2.1
     106.0       1.3
     118.0       8.3
     119.0      10.3
     120.0       6.2
     121.0       1.9
     132.0       1.3
     133.0       1.1
     134.0     100.0
     135.0      82.5
     136.0       8.0

Assign. Shift(ppm) A 6.46 to 6.62 B 7.088 C 2.88 D 2.30

     Hz     ppm     Int.

    635.88   7.101     31
    628.75   7.021     37
    589.44   6.582    122
    588.94   6.576    113
    586.69   6.551     37
    585.94   6.543     36
    585.19   6.535     31
    583.00   6.510     66
    258.06   2.882   1000
    255.75   2.856     54
    206.31   2.304    274
    205.69   2.297    256
