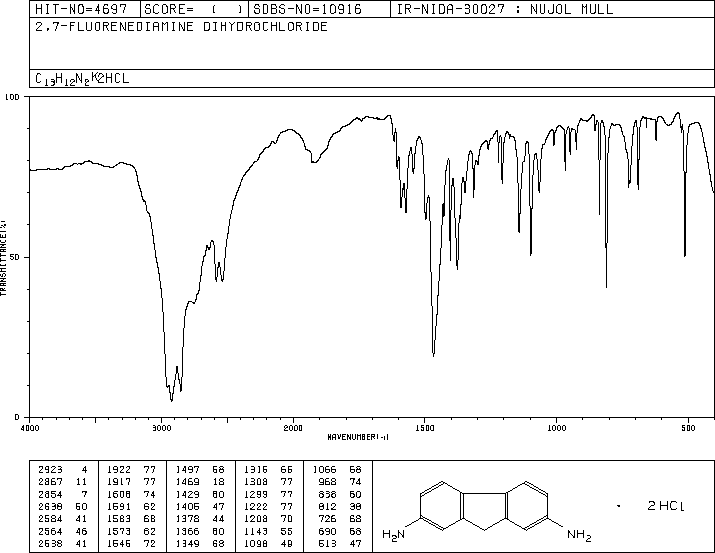

2,7-二氨基芴二鹽酸鹽(13548-69-1)紅外圖譜(IR1)
分子式:C13H14Cl2N2
分子量: 269.17
InChI:InChI=1S/C13H12N2.2ClH/c14-10-1-3-12-8(6-10)5-9-7-11(15)2-4-13(9)12;;/h1-4,6-7H,5,14-15H2;2*1H
InChIKey: QJXYCUYLZDQRIN-UHFFFAOYSA-N
Smiles:C12C=CC(N)=CC=1CC1=CC(N)=CC=C21.Cl.Cl
-

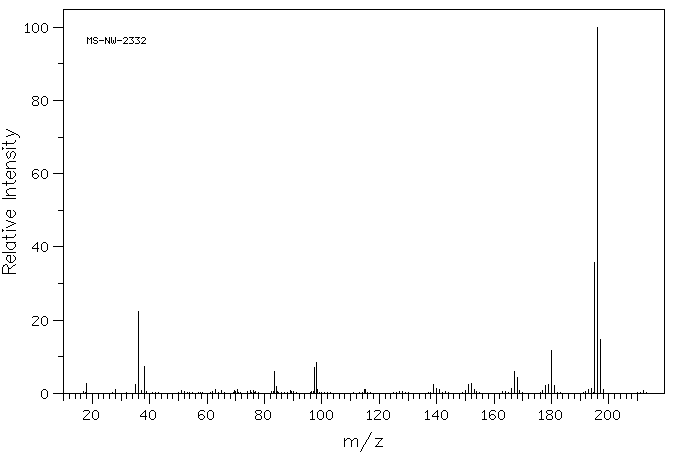

Mass
MS-NW-2332
2,7-fluorenediamine dihydrochloride
C13H12N2 2HCl (Mass of molecular ion: 196)
Source Temperature: 200 °C
Sample Temperature: 140 °C
Direct, 75 eV
18.0 2.7
28.0 1.0
35.0 2.4
36.0 22.5
38.0 7.4
63.0 1.0
70.5 1.0
83.5 6.0
84.0 1.9
97.5 7.0
98.0 8.5
98.5 1.1
115.0 1.0
139.0 2.3
140.0 1.4
141.0 1.0
151.0 2.4
152.0 2.6
153.0 1.0
166.0 1.3
167.0 5.9
168.0 4.4
178.0 2.2
179.0 2.5
180.0 11.7
181.0 2.1
193.0 1.1
194.0 1.3
195.0 35.7
196.0 100.0
197.0 14.8
198.0 1.1
