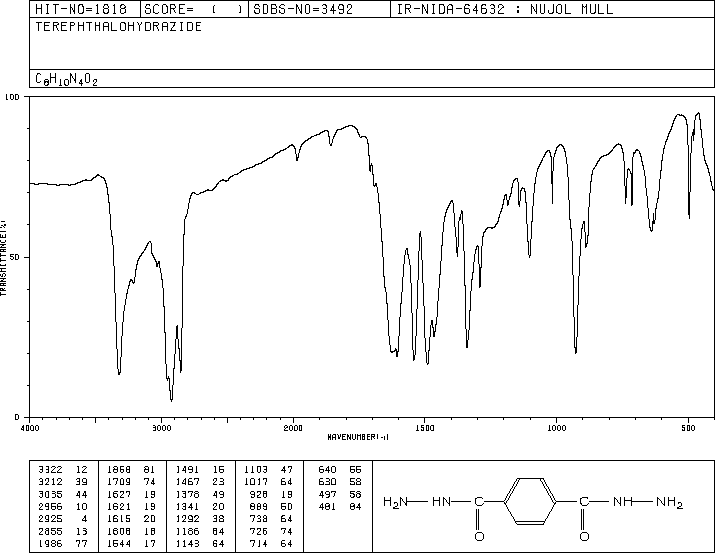

對苯二酸二肼(136-64-1)紅外圖譜(IR2)
分子式:C8H10N4O2
分子量: 194.19
InChI:InChI=1S/C8H10N4O2/c9-11-7(13)5-1-2-6(4-3-5)8(14)12-10/h1-4H,9-10H2,(H,11,13)(H,12,14)
InChIKey: ALHNLFMSAXZKRC-UHFFFAOYSA-N
Smiles:C1(C=CC(C(=O)NN)=CC=1)C(=O)NN
-

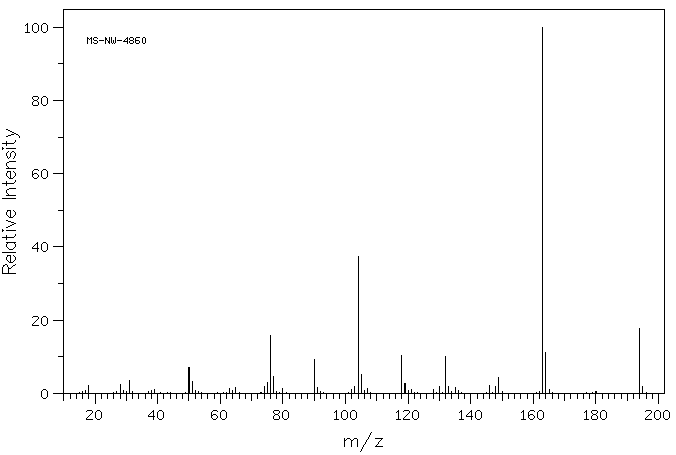

Mass
MS-NW-4860
terephthalohydrazide
C8H10N4O2 (Mass of molecular ion: 194)
Source Temperature: 220 °C
Sample Temperature: 200 °C
Direct, 75 eV
18.0 2.2
28.0 2.3
31.0 3.5
39.0 1.1
50.0 7.2
51.0 3.2
63.0 1.3
65.0 1.7
74.0 1.9
75.0 3.0
76.0 15.8
77.0 4.7
80.0 1.4
90.0 9.3
91.0 1.5
102.0 1.0
103.0 1.8
104.0 37.3
105.0 5.1
107.0 1.2
118.0 10.3
119.0 2.6
121.0 1.0
128.0 1.0
130.0 1.8
132.0 10.2
133.0 1.9
135.0 1.7
146.0 2.2
148.0 2.0
149.0 4.3
163.0 100.0
164.0 11.2
165.0 1.0
194.0 17.7
195.0 1.9
