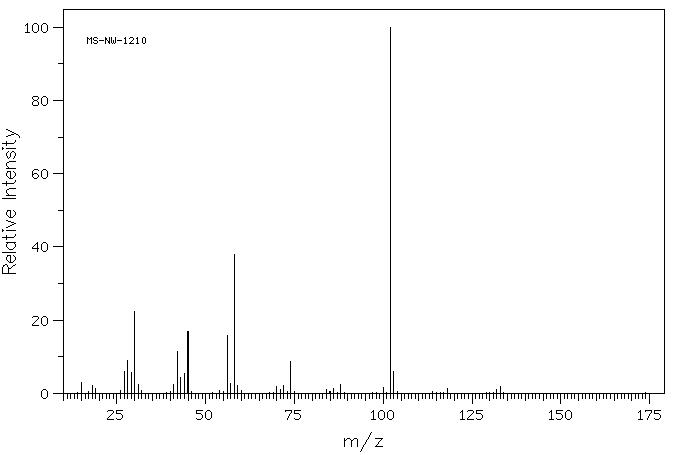

Mass

MS-NW-1210
2,2'-(ethylimino)diethanol
C6H15NO2            (Mass of molecular ion:    133)

   Source Temperature: 240 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV

      15.0       2.9
      18.0       2.2
      19.0       1.3
      27.0       6.0
      28.0       9.0
      29.0       5.7
      30.0      22.4
      31.0       2.3
      41.0       2.4
      42.0      11.3
      43.0       4.2
      44.0       5.3
      45.0      17.0
      56.0      15.9
      57.0       2.8
      58.0      38.0
      59.0       2.1
      70.0       1.8
      71.0       1.1
      72.0       2.2
      74.0       8.6
      84.0       1.0
      86.0       1.3
      88.0       2.4
     100.0       1.7
     102.0     100.0
     103.0       6.1
     118.0       1.2
     132.0       1.0
     133.0       1.8

Assign. Shift(ppm) A 3.83 B 3.606 C 2.640 D 2.628 E 1.045

     Hz     ppm     Int.

    343.31   3.834    653
    328.75   3.671    514
    325.81   3.638    106
    323.50   3.613    900
    320.56   3.580    114
    317.94   3.551    665
    246.44   2.752    111
    241.25   2.694    647
    239.13   2.671    498
    235.69   2.632    840
    232.00   2.591    509
    230.56   2.575    509
    225.19   2.515    145
    100.19   1.119    480
     96.69   1.080     24
     95.38   1.065     33
     93.25   1.042   1000
     88.69   0.991     23
     86.06   0.961    376
