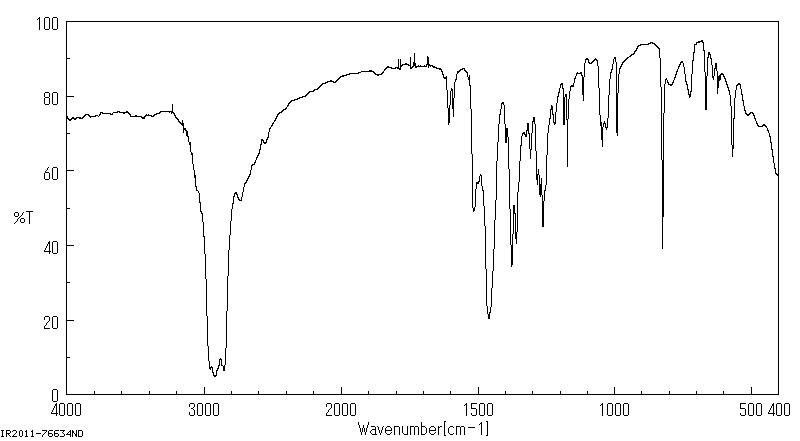

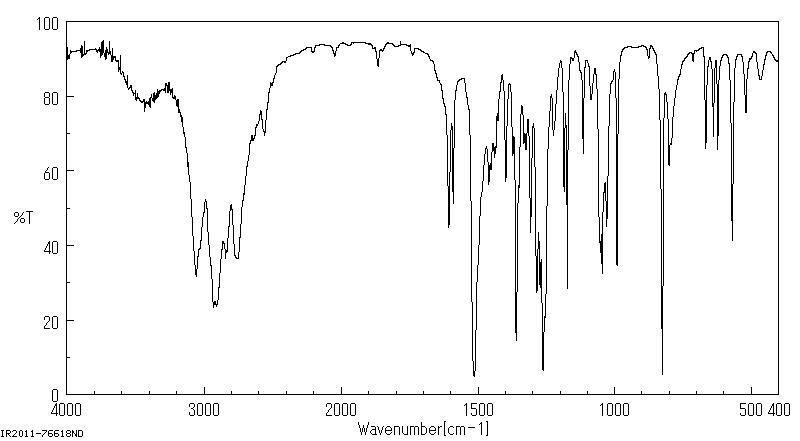

1,2-二氫-1-(4-甲氧基苯基)-5H-四唑-5-硫酮(13980-76-2)紅外圖譜(IR1)
InChI:InChI=1S/C8H8N4OS/c1-13-7-4-2-6(3-5-7)12-8(14)9-10-11-12/h2-5H,1H3,(H,9,11,14)
InChIKey: UFALKIBIWOKBDL-UHFFFAOYSA-N
Smiles:N1(C2=CC=C(OC)C=C2)C(=S)N=NN1
-

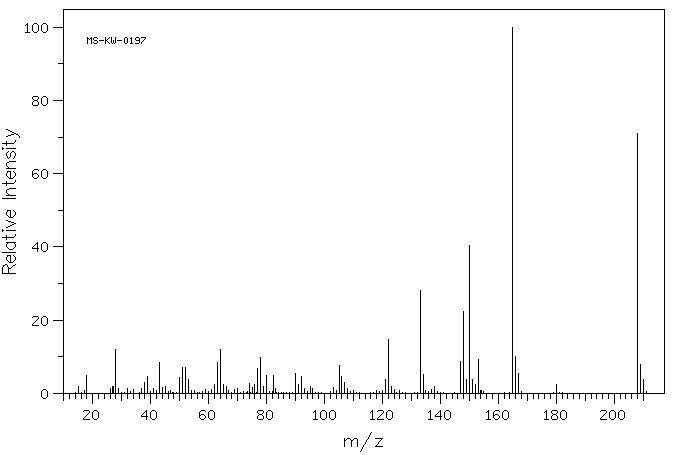

Mass
MS-KW-0197
1-(p-methoxyphenyl)-1H-tetrazole-5-thiol
C8H8N4OS (Mass of molecular ion: 208)
Source Temperature: 170 °C
Sample Temperature: 140 °C
Direct, 75 eV
15.0 2.0
18.0 4.8
26.0 1.4
27.0 1.9
28.0 12.0
29.0 1.2
32.0 1.3
34.0 1.0
37.0 1.2
38.0 3.0
39.0 4.6
41.0 1.4
43.0 8.5
44.0 1.5
45.0 2.0
50.0 4.2
51.0 7.0
52.0 7.0
53.0 3.7
59.0 1.1
61.0 1.1
62.0 2.5
63.0 8.4
64.0 11.9
65.0 2.4
66.0 1.8
69.0 1.1
70.0 1.4
74.0 2.6
75.0 1.6
76.0 2.3
77.0 6.7
78.0 9.7
79.0 1.8
80.0 4.8
82.5 4.9
83.0 1.3
90.0 5.4
91.0 2.4
92.0 4.7
93.0 1.2
95.0 1.9
96.0 1.4
103.0 1.6
105.0 7.7
106.0 4.5
107.0 2.9
108.0 1.3
121.0 3.9
122.0 14.8
123.0 1.8
124.0 1.0
133.0 28.0
134.0 5.1
137.0 1.1
138.0 2.0
147.0 8.6
148.0 22.5
149.0 3.8
150.0 40.5
151.0 3.9
152.0 2.3
153.0 9.2
165.0 100.0
166.0 10.1
167.0 5.3
180.0 2.4
208.0 71.1
209.0 8.0
210.0 3.9
