N,N,N',N'-四(2-羥乙基)乙二胺(140-07-8)核磁圖(13CNMR)
分子式:C10H24N2O4
分子量: 236.31
InChI:InChI=1S/C10H24N2O4/c13-7-3-11(4-8-14)1-2-12(5-9-15)6-10-16/h13-16H,1-10H2
InChIKey: BYACHAOCSIPLCM-UHFFFAOYSA-N
Smiles:C(N(CCO)CCO)CN(CCO)CCO
-

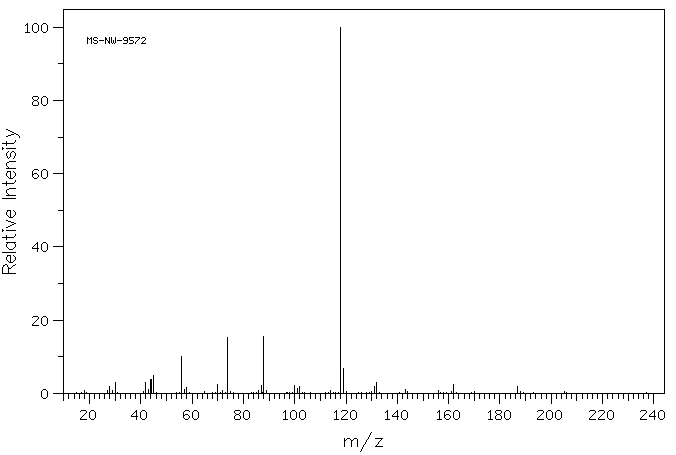

Mass
MS-NW-9572
2,2',2'',2'''-(ethylenedinitrilo)tetraethanol
C10H24N2O4 (Mass of molecular ion: 236)
Source Temperature: 180 °C
Sample Temperature: 120 °C
Direct, 75 eV
28.0 1.8
30.0 3.0
42.0 3.1
43.0 1.1
44.0 3.8
45.0 5.0
56.0 10.2
57.0 1.0
58.0 1.6
70.0 2.3
74.0 15.2
87.0 2.1
88.0 15.6
100.0 2.1
101.0 1.2
102.0 2.0
118.0 100.0
119.0 6.9
131.0 2.0
132.0 3.0
143.0 1.1
162.0 2.4
187.0 1.8
