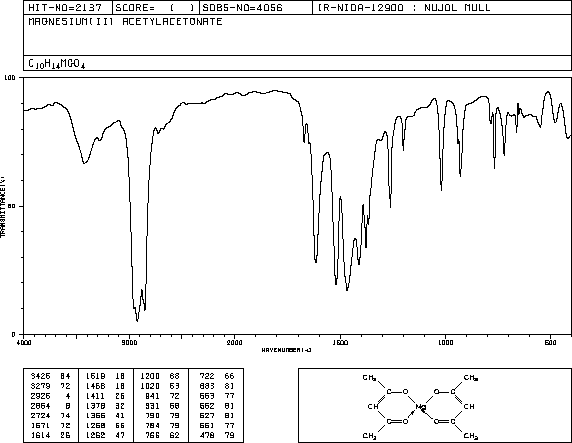

二(2,4-戊二酸)鎂(II)(14024-56-7)紅外圖譜(IR1)
分子式:C10H14MgO4
分子量: 222.52
InChI:InChI=1S/2C5H8O2.Mg/c2*1-4(6)3-5(2)7;/h2*3,6H,1-2H3;/q;;+2/p-2/b2*4-3-;
InChIKey: AKTIAGQCYPCKFX-FDGPNNRMSA-L
Smiles:O([Mg]O/C(/C)=C\C(=O)C)/C(/C)=C\C(=O)C
-
Mass
MS-NW-5560
magnesium(II) acetylacetonate
C10H14MgO4 (Mass of molecular ion: 222)
Source Temperature: 190 °C
Sample Temperature: 160 °C
Direct, 75 eV
15.0 2.4
24.0 8.8
25.0 1.7
26.0 1.2
27.0 2.0
39.0 8.7
40.0 1.4
41.0 3.1
42.0 2.0
43.0 17.7
55.0 1.0
61.5 1.1
65.0 2.8
67.0 1.8
81.0 3.0
82.0 1.0
83.0 2.2
85.0 3.5
93.0 1.8
94.0 2.5
96.0 1.5
100.0 1.6
105.0 4.2
106.0 1.0
107.0 6.8
108.0 6.0
109.0 2.3
122.0 2.3
123.0 100.0
124.0 19.8
125.0 16.2
126.0 1.0
180.0 13.9
181.0 3.3
182.0 2.3
193.0 4.0
194.0 1.2
207.0 86.5
208.0 20.2
209.0 14.7
210.0 1.7
222.0 67.1
223.0 17.1
224.0 12.1
225.0 1.6
345.0 1.9
