二(乙酰丙酮)鈀(II)(14024-61-4)質(zhì)譜(MS)
分子式:C10H14O4Pd
分子量: 304.64
InChI:InChI=1S/2C5H8O2.Pd/c2*1-4(6)3-5(2)7;/h2*3,6H,1-2H3;/q;;+2/p-2/b2*4-3-;
InChIKey: JKDRQYIYVJVOPF-FDGPNNRMSA-L
Smiles:O([Pd]O/C(/C)=C\C(=O)C)/C(/C)=C\C(=O)C
-

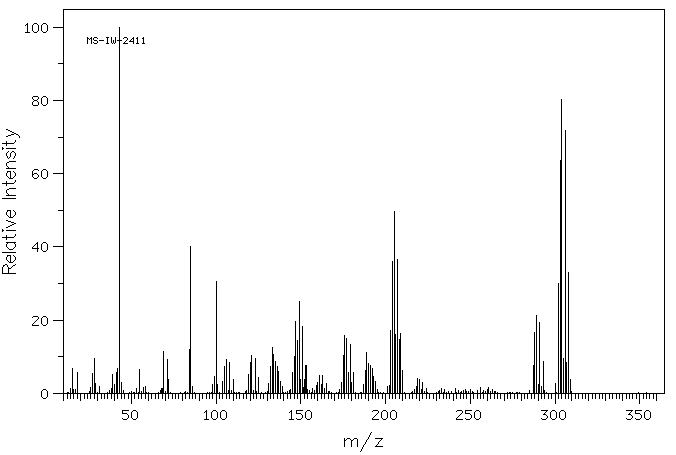

Mass
MS-IW-2411
bis(acetylacetonato)palladium(II)
C10H14O4Pd (Mass of molecular ion: 304)
Source Temperature: 160 °C
Sample Temperature: 210 °C
Direct, 75 eV
14.0 1.4
15.0 6.8
16.0 1.1
17.0 1.0
18.0 5.7
26.0 1.7
27.0 5.4
28.0 9.5
29.0 2.6
31.0 1.8
38.0 1.3
39.0 5.1
40.0 2.4
41.0 5.7
42.0 6.7
43.0 100.0
44.0 2.9
53.0 1.3
55.0 6.6
57.0 1.6
58.0 1.9
68.0 1.2
69.0 11.5
71.0 9.3
72.0 3.8
84.0 12.1
85.0 40.2
86.0 2.0
98.0 2.4
99.0 4.7
100.0 30.6
101.0 2.3
104.0 3.3
105.0 7.4
106.0 9.2
108.0 8.5
110.0 3.8
119.0 5.2
120.0 8.5
121.0 10.3
123.0 9.5
125.0 4.2
131.0 2.7
132.0 7.3
133.0 12.6
134.0 10.5
135.0 8.7
136.0 7.3
137.0 6.0
138.0 3.3
139.0 1.8
144.0 1.1
145.0 5.7
146.0 10.2
147.0 19.5
148.0 14.5
149.0 25.0
150.0 3.8
151.0 18.4
151.5 1.6
152.0 3.8
153.0 7.6
154.0 1.1
157.0 1.4
159.0 2.2
160.0 3.1
161.0 4.8
162.0 2.5
163.0 5.0
164.0 1.2
165.0 2.7
173.0 1.0
174.0 2.9
175.0 10.3
176.0 15.7
177.0 14.9
178.0 5.7
179.0 13.3
180.0 3.0
181.0 5.8
187.0 2.3
188.0 6.3
189.0 11.2
190.0 8.1
191.0 7.7
192.0 6.7
193.0 4.6
194.0 3.2
195.0 1.1
201.0 2.0
202.0 2.1
203.0 17.2
204.0 36.0
205.0 49.6
206.0 16.2
207.0 36.5
208.0 14.6
209.0 16.4
210.0 6.2
217.0 1.0
218.0 1.9
219.0 4.0
220.0 3.7
221.0 1.1
222.0 3.1
224.0 1.3
233.0 1.3
235.0 1.0
241.0 1.4
247.0 1.0
250.0 1.0
256.0 1.6
260.0 1.0
261.0 1.5
263.0 1.1
287.0 7.6
288.0 16.6
289.0 21.3
290.0 2.4
291.0 19.3
292.0 2.0
293.0 8.8
300.0 2.7
302.0 30.1
303.0 63.6
304.0 80.3
305.0 9.4
306.0 71.9
307.0 8.4
308.0 33.1
309.0 3.7
