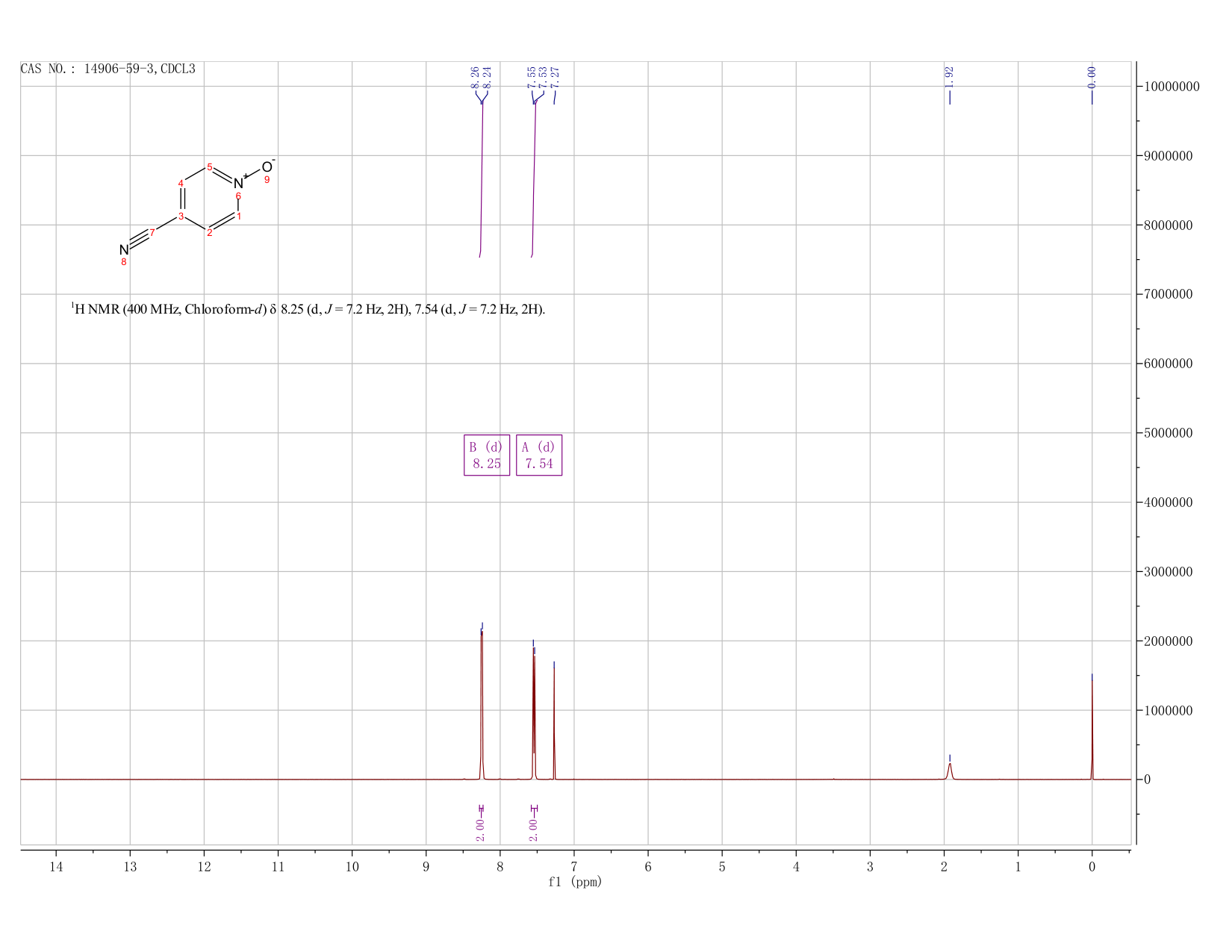

4-氰基吡啶 N-氧化物(14906-59-3)核磁圖(1HNMR)
InChI:InChI=1S/C6H4N2O/c7-5-6-1-3-8(9)4-2-6/h1-4H
InChIKey: QNCSFBSIWVBTHE-UHFFFAOYSA-N
Smiles:C1[N+]([O-])=CC=C(C#N)C=1
-

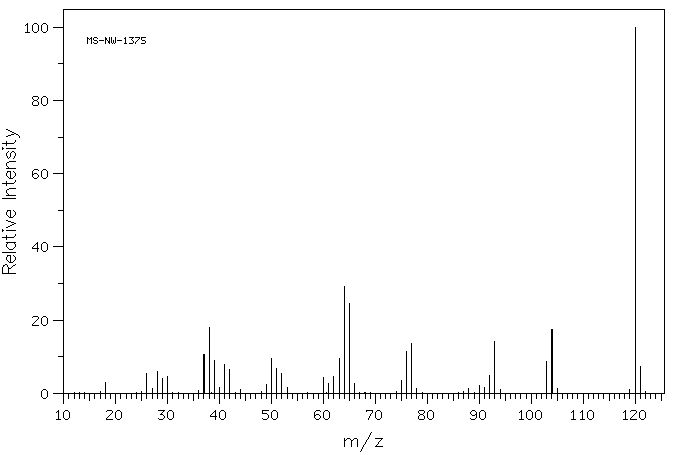

Mass
MS-NW-1375
isonicotinonitrile 1-oxide
C6H4N2O (Mass of molecular ion: 120)
Source Temperature: 260 °C
Sample Temperature: 180 °C
Reservoir, 75 eV
18.0 3.1
26.0 5.5
27.0 1.3
28.0 6.1
29.0 4.0
30.0 4.6
37.0 10.7
38.0 18.0
39.0 8.9
40.0 1.6
41.0 7.9
42.0 6.5
44.0 1.1
49.0 2.4
50.0 9.4
51.0 6.8
52.0 5.5
53.0 1.6
60.0 4.4
61.0 2.7
62.0 4.6
63.0 9.4
64.0 29.3
65.0 24.6
66.0 2.6
75.0 3.6
76.0 11.5
77.0 13.5
78.0 1.4
88.0 1.2
90.0 2.1
91.0 1.5
92.0 4.9
93.0 14.1
94.0 1.0
103.0 8.6
104.0 17.5
105.0 1.3
119.0 1.0
120.0 100.0
121.0 7.3
