戊二烯醛縮二苯胺鹽酸鹽(1497-49-0)紅外圖譜(IR1)
分子式:C17H17ClN2
分子量: 284.78
InChI:InChI=1S/C17H16N2.ClH/c1-4-10-16(11-5-1)18-14-8-3-9-15-19-17-12-6-2-7-13-17;/h1-15,18H;1H/b9-3+,14-8+,19-15+;
InChIKey: VUCMMJBDNXZQDJ-SAIFEKGMSA-N
Smiles:C1(N/C=C/C=C/C=N/C2C=CC=CC=2)C=CC=CC=1.Cl
-

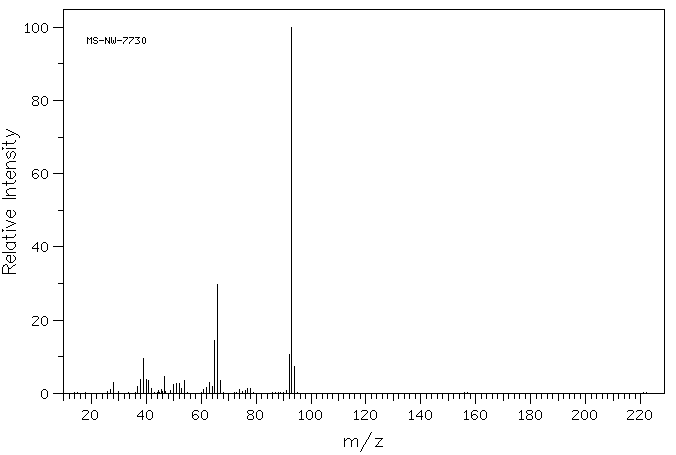

Mass
MS-NW-7730
N-(5-phenylimino-1,3-pentadienyl)aniline monohydrochloride
C17H16N2 HCl (Mass of molecular ion: 248)
Source Temperature: 170 °C
Sample Temperature: 130 °C
Direct, 75 eV
27.0 1.1
28.0 3.1
37.0 1.8
38.0 3.7
39.0 9.4
40.0 3.8
41.0 3.4
42.0 1.4
45.5 1.1
46.5 4.6
50.0 2.3
51.0 2.7
52.0 2.8
53.0 1.2
54.0 3.6
61.0 1.0
62.0 1.6
63.0 2.9
64.0 1.9
65.0 14.4
66.0 29.8
67.0 3.6
74.0 1.0
77.0 1.2
78.0 1.4
92.0 10.5
93.0 100.0
94.0 7.4
