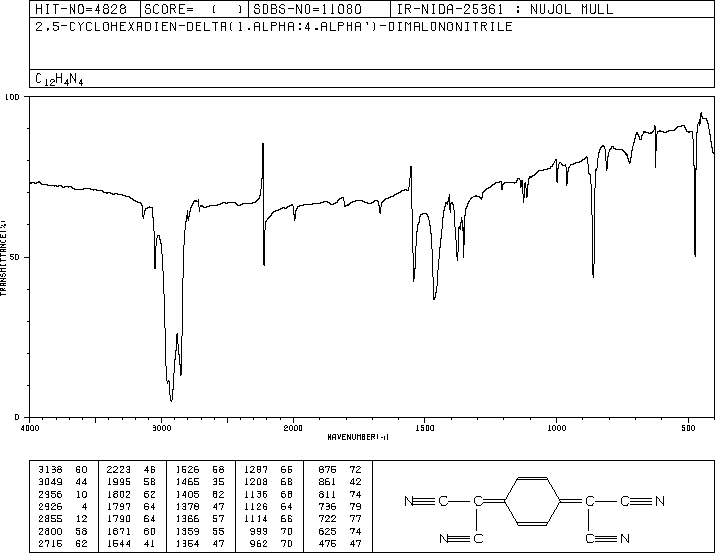

7,7,8,8-四氰基對苯二醌二甲烷(1518-16-7)紅外圖譜(IR2)
InChI:InChI=1S/C12H4N4/c13-5-11(6-14)9-1-2-10(4-3-9)12(7-15)8-16/h1-4H
InChIKey: PCCVSPMFGIFTHU-UHFFFAOYSA-N
Smiles:C1(=C(C#N)C#N)C=CC(=C(C#N)C#N)C=C1 |c:8,t:0|
-

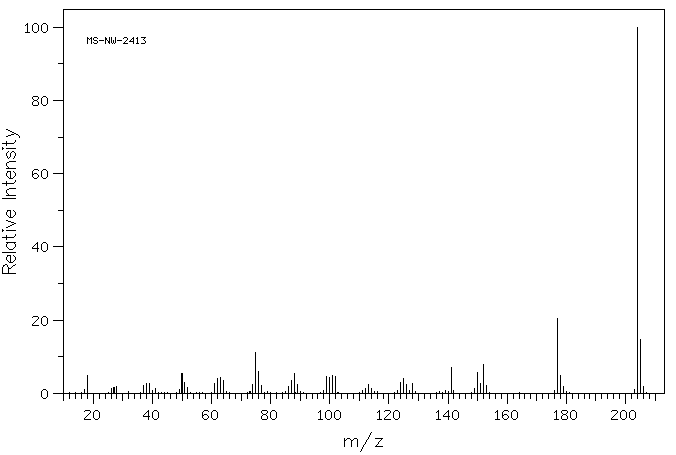

Mass
MS-NW-2413
2,5-cyclohexadien-delta(1,alpha:4,alpha')-dimalononitrile
C12H4N4 (Mass of molecular ion: 204)
Source Temperature: 220 °C
Sample Temperature: 140 °C
Direct, 75 eV
17.0 1.0
18.0 4.8
26.0 1.3
27.0 1.7
28.0 1.9
37.0 2.1
38.0 2.7
39.0 2.8
41.0 1.4
49.0 1.0
50.0 5.3
51.0 3.1
52.0 1.7
61.0 2.8
62.0 4.1
63.0 4.2
64.0 3.5
74.0 2.4
75.0 11.2
76.0 5.9
77.0 2.1
86.0 1.9
87.0 3.6
88.0 5.4
89.0 2.3
99.0 4.7
100.0 4.4
101.0 4.8
102.0 4.7
112.0 1.4
113.0 2.3
114.0 1.4
124.0 3.1
125.0 4.1
126.0 2.5
128.0 2.8
141.0 7.1
149.0 1.4
150.0 5.8
151.0 2.6
152.0 7.9
153.0 2.1
177.0 20.4
178.0 4.9
179.0 1.9
203.0 1.0
204.0 100.0
205.0 14.7
206.0 2.0
CU(II) COMPLEX OF BIPYRIDINE/TCNQ, POWDER
CU(II) COMPLEX OF ETHYLEN DIAMINE/TCNQ, POWDER
