4,4-二硝基聯(lián)苯(1528-74-1)Raman光譜
InChI:InChI=1S/C12H8N2O4/c15-13(16)11-5-1-9(2-6-11)10-3-7-12(8-4-10)14(17)18/h1-8H
InChIKey: BDLNCFCZHNKBGI-UHFFFAOYSA-N
Smiles:C1(C2=CC=C([N+]([O-])=O)C=C2)=CC=C([N+]([O-])=O)C=C1
-

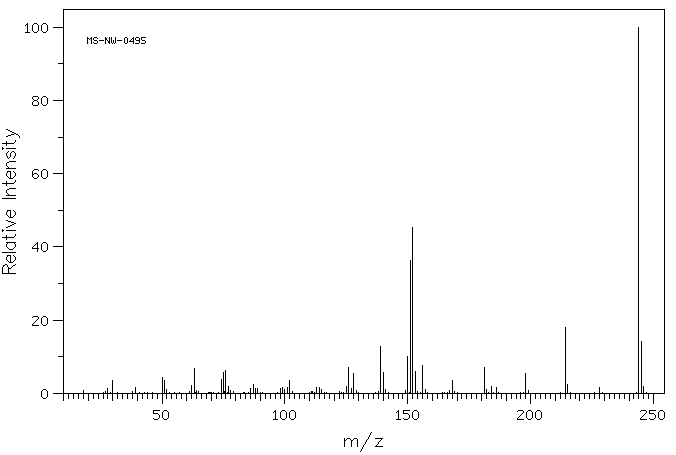

Mass
MS-NW-0495
4,4'-dinitrobiphenyl
C12H8N2O4 (Mass of molecular ion: 244)
Source Temperature: 190 °C
Sample Temperature: 130 °C
Direct, 75 eV
28.0 1.3
30.0 3.6
39.0 1.6
50.0 4.2
51.0 3.6
52.0 1.0
62.0 2.1
63.0 6.7
74.0 3.9
75.0 5.8
76.0 6.2
77.0 1.9
86.0 1.2
87.0 2.4
88.0 1.3
89.0 1.4
98.0 1.4
99.0 1.6
100.0 1.1
101.0 1.6
102.0 3.5
113.0 1.7
114.0 1.7
115.0 1.0
125.0 1.8
126.0 7.1
127.0 1.3
128.0 5.4
139.0 12.7
140.0 5.8
141.0 1.0
150.0 10.1
151.0 36.3
152.0 45.3
153.0 6.0
156.0 7.7
157.0 1.0
168.0 3.4
181.0 7.1
182.0 1.1
184.0 1.8
186.0 1.5
198.0 5.4
214.0 17.9
215.0 2.5
228.0 1.5
244.0 100.0
245.0 14.3
246.0 1.9
