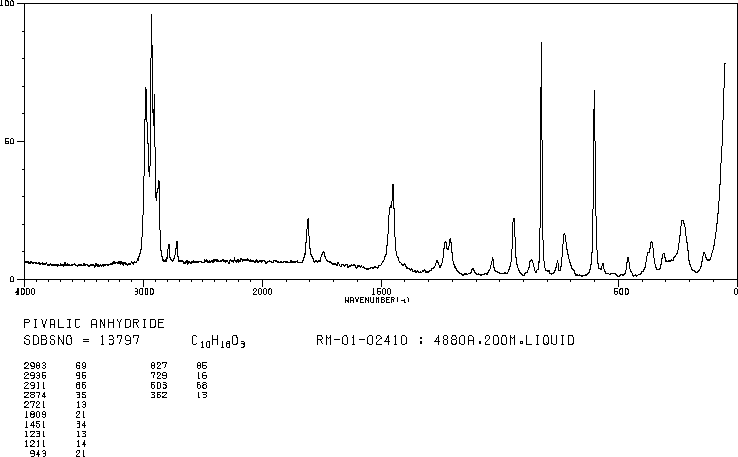

特戊酸酐(1538-75-6)Raman光譜
InChI:InChI=1S/C10H18O3/c1-9(2,3)7(11)13-8(12)10(4,5)6/h1-6H3
InChIKey: PGZVFRAEAAXREB-UHFFFAOYSA-N
Smiles:C(C)(C)(C)C(=O)OC(=O)C(C)(C)C
-
Mass
MS-NW-5678
pivalic anhydride
C10H18O3 (Mass of molecular ion: 186)
Source Temperature: 260 °C
Sample Temperature: 190 °C
Reservoir, 75 eV
27.0 3.1
28.0 1.7
29.0 10.5
39.0 5.2
40.0 1.1
41.0 17.1
42.0 2.5
43.0 1.8
55.0 1.3
56.0 2.6
57.0 100.0
58.0 4.6
59.0 1.0
85.0 36.4
86.0 2.2
-
| 1H NMR |
300 MHz |
| C10 H18 O3
|
0.04 ml : 0.5 ml CDCl3
|
| pivalic anhydride
|
 |
Parameter ppm Hz
D(A) 1.265
|
Hz ppm Int.
379.50 1.265 1000
