16529-66-1

3-戊烯腈(16529-66-1)傅里葉紅外光譜圖

產(chǎn)品名稱:3-戊烯腈

CAS:16529-66-1

分子式:C5H7N

分子量: 81.12

¹HNMR

¹³CNMR

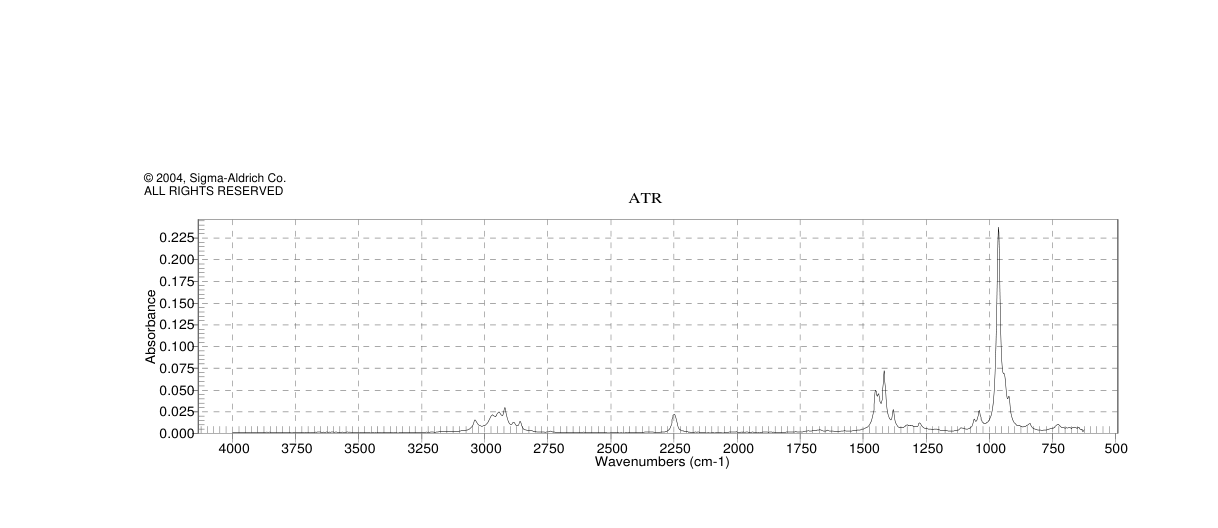

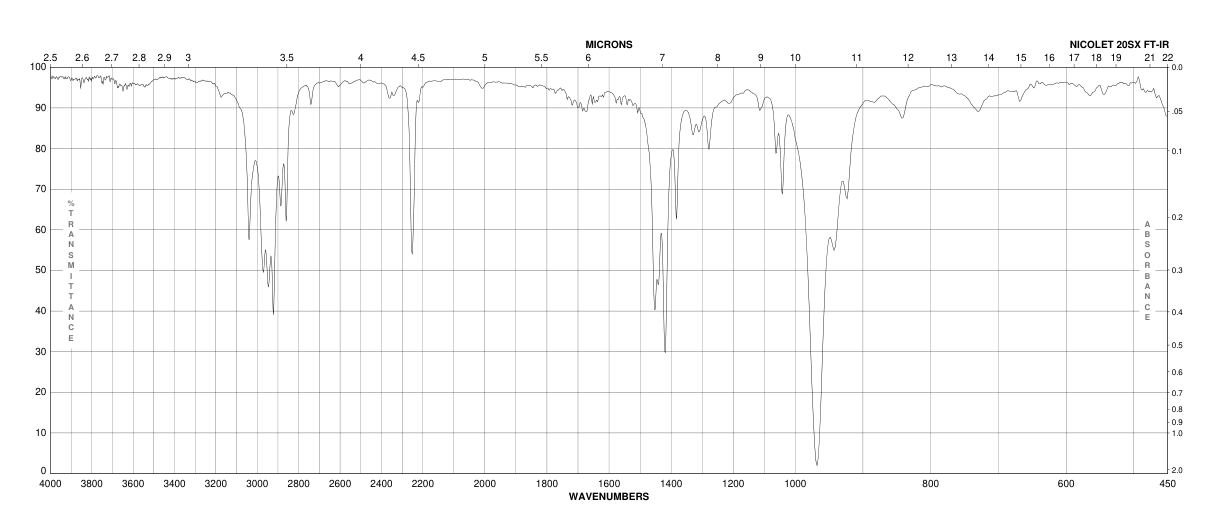

FT-IR

Mass

MS-IW-9171
trans-3-pentenenitrile
C5H7N               (Mass of molecular ion:     81)

   Source Temperature: 220 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      15.0       1.2
      26.0       7.7
      27.0      18.5
      28.0      23.2
      29.0       3.1
      37.0       4.4
      38.0       8.2
      38.5       1.4
      39.0      45.7
      40.0       4.5
      41.0      85.5
      42.0       3.5
      49.0       1.8
      50.0       6.6
      51.0       9.3
      52.0      13.1
      53.0      27.1
      54.0     100.0
      55.0       6.0
      64.0       2.5
      66.0       9.0
      75.0       1.7
      76.0       1.3
      80.0      11.0
      81.0      41.4
      82.0       3.2

400 MHz in CDCl3

¹H NMR	399.65 MHz
C₅ H₇ N	0.05 ml : 0.5 ml CDCl₃
trans-3-pentenenitrile

    Assign.     Shift(ppm)

      A             5.829
      B             5.375
      C             3.058
      D             1.729

     Hz     ppm     Int.

   2347.90   5.875     61
   2343.02   5.863     98
   2341.31   5.859    179
   2339.60   5.855    100
   2336.43   5.847    101
   2334.72   5.842    192
   2333.01   5.838    122
   2330.93   5.833     51
   2329.96   5.831     49
   2327.76   5.825    133
   2326.05   5.821    214
   2324.34   5.816    117
   2321.17   5.809    113
   2319.58   5.805    207
   2317.87   5.800    116
   2312.99   5.788     74
   2161.87   5.410    114
   2160.03   5.405    116
   2157.96   5.400     97
   2156.25   5.396    213
   2154.42   5.391    211
   2152.71   5.387     96
   2150.51   5.381    113
   2148.80   5.377    119
   2146.61   5.372    104
   2144.90   5.367     96
   2142.70   5.362     83
   2140.99   5.358    181
   2139.28   5.353    179
   2137.45   5.349     80
   2135.38   5.344     94
   2133.54   5.339     93
   1228.27   3.074    192
   1226.81   3.070    518
   1225.10   3.066    680
   1223.51   3.062    510
   1222.78   3.060    262
   1221.92   3.058    251
   1221.07   3.056    494
   1219.48   3.052    646
   1217.90   3.048    470
   1216.31   3.044    171
    696.53   1.743    515
    694.95   1.739   1000
    693.24   1.735    955
    691.65   1.731    453
    689.94   1.727    456
    688.35   1.723    922
    686.65   1.719    887
    685.06   1.715    416

in CDCl3
