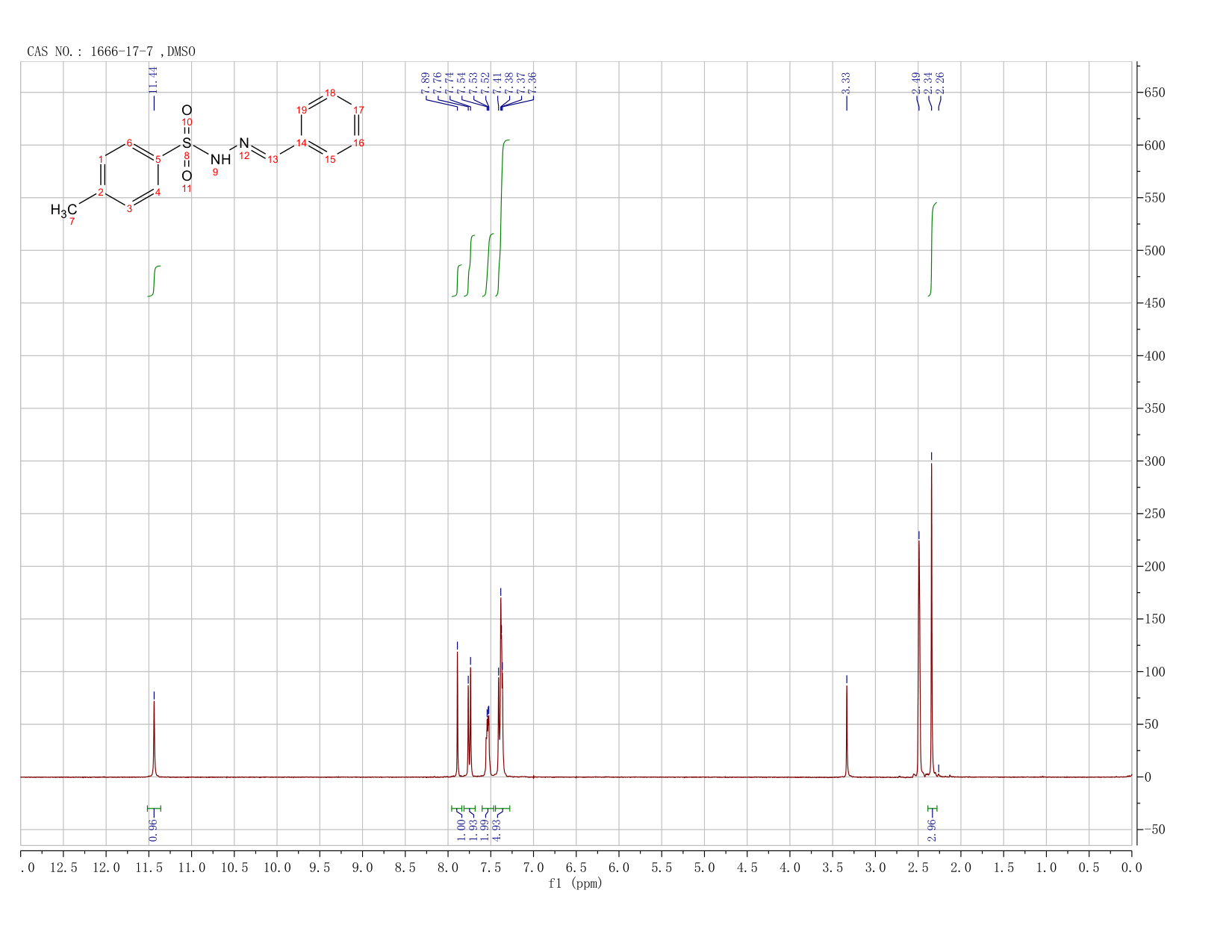

苯甲醛對(duì)甲苯磺酰腙(1666-17-7)核磁圖(1HNMR)
分子式:C14H14N2O2S
分子量: 274.34
InChI:InChI=1S/C14H14N2O2S/c1-12-7-9-14(10-8-12)19(17,18)16-15-11-13-5-3-2-4-6-13/h2-11,16H,1H3
InChIKey: FZFLTDNAHASQQC-UHFFFAOYSA-N
Smiles:C1(S(NN=CC2=CC=CC=C2)(=O)=O)=CC=C(C)C=C1
-

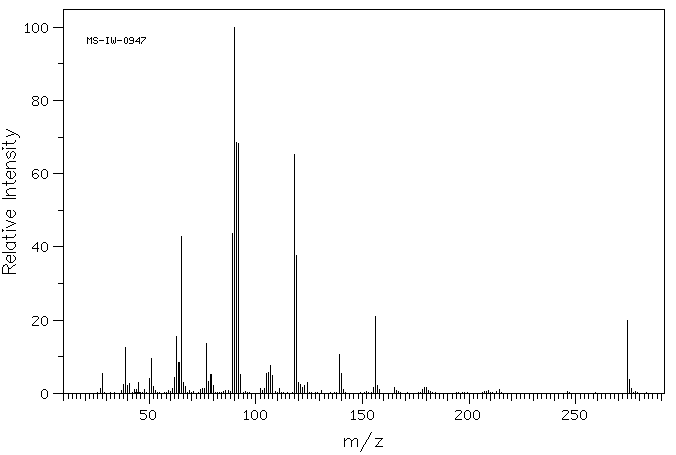

Mass
MS-IW-0947
benzaldehyde tosylhydrazone
C14H14N2O2S (Mass of molecular ion: 274)
Source Temperature: 170 °C
Sample Temperature: 120 °C
Direct, 75 eV
27.0 1.2
28.0 5.4
38.0 2.5
39.0 12.6
40.0 2.1
41.0 2.6
43.0 1.0
44.0 1.0
45.0 3.1
48.0 1.1
50.0 4.1
51.0 9.5
52.0 1.8
61.0 1.3
62.0 4.4
63.0 15.4
64.0 8.5
65.0 42.8
66.0 3.1
67.0 1.8
74.0 1.0
75.0 1.3
76.0 1.2
77.0 13.6
78.0 3.3
79.0 5.2
80.0 2.1
89.0 43.7
90.0 100.0
91.0 68.6
92.0 68.4
93.0 5.1
102.0 1.3
104.0 1.3
105.0 5.4
106.0 5.6
107.0 7.6
108.0 4.9
111.0 1.4
118.0 65.2
119.0 37.8
120.0 3.1
121.0 2.3
122.0 1.5
123.0 2.2
124.0 2.9
139.0 10.6
140.0 5.5
141.0 1.0
155.0 1.6
156.0 20.9
157.0 2.1
158.0 1.1
165.0 1.7
178.0 1.1
179.0 1.5
180.0 1.5
214.0 1.1
274.0 20.0
275.0 3.7
276.0 1.2
