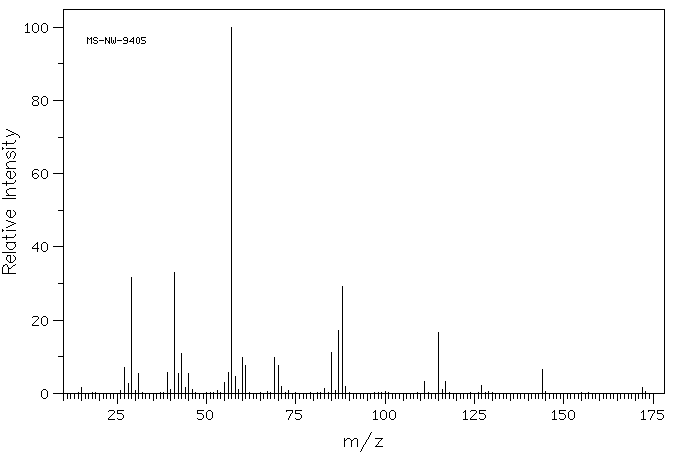

Mass

MS-NW-9405
ethyl 4,4-dimethyl-3-oxovalerate
C9H16O3             (Mass of molecular ion:    172)

   Source Temperature: 260 °C
   Sample Temperature: 160 °C
   Reservoir, 75 eV

      15.0       1.5
      27.0       7.0
      28.0       2.8
      29.0      31.6
      31.0       5.3
      39.0       5.8
      40.0       1.1
      41.0      33.0
      42.0       5.3
      43.0      11.0
      44.0       1.5
      45.0       5.4
      46.0       1.0
      55.0       2.9
      56.0       5.7
      57.0     100.0
      58.0       4.6
      59.0       1.0
      60.0       9.7
      61.0       7.7
      69.0       9.8
      70.0       7.7
      71.0       2.0
      83.0       1.3
      85.0      11.1
      87.0      17.2
      88.0      29.1
      89.0       2.0
     111.0       3.2
     115.0      16.6
     116.0       1.0
     117.0       3.2
     127.0       2.1
     144.0       6.4
     172.0       1.7

Assign. Shift(ppm) A 4.187 B 3.558 C 1.274 D 1.178

     Hz     ppm     Int.

   1684.33   4.215     58
   1677.12   4.197    174
   1669.92   4.179    179
   1662.84   4.161     64
   1422.00   3.559    423
    516.36   1.293    196
    509.16   1.275    360
    502.08   1.257    186
    470.83   1.179   1000
