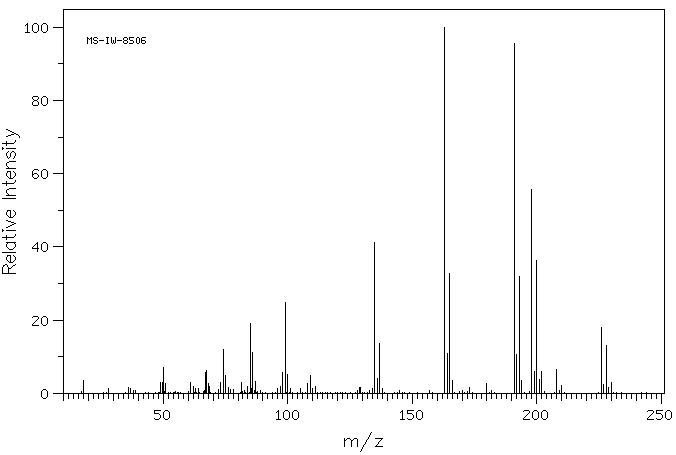

Mass

MS-IW-8506
3,4-dichloro-1,2-naphthoquinone
C10H4Cl2O2          (Mass of molecular ion:    226)

   Source Temperature: 160 °C
   Sample Temperature: 130 °C
   Direct, 75 eV

      18.0       3.5
      28.0       1.2
      36.0       1.5
      37.0       1.2
      49.0       2.9
      49.5       3.0
      50.0       7.0
      51.0       2.8
      61.0       3.0
      62.0       2.0
      63.0       1.4
      64.0       1.4
      67.0       5.6
      67.5       6.2
      68.0       2.6
      68.5       1.9
      72.0       1.0
      73.0       3.1
      74.0      11.9
      75.0       4.8
      76.0       1.6
      77.0       1.1
      78.0       1.0
      81.5       3.0
      84.0       2.0
      85.0      19.0
      85.5       1.4
      86.0      11.1
      87.0       3.2
      96.0       1.2
      97.0       1.8
      98.0       5.6
      99.0      24.8
     100.0       5.2
     101.0       1.4
     105.0       1.2
     108.0       2.6
     109.0       4.9
     110.0       1.4
     111.0       1.8
     129.0       1.5
     134.0       1.4
     135.0      41.1
     136.0       4.0
     137.0      13.5
     138.0       1.2
     163.0     100.0
     164.0      10.9
     165.0      32.7
     166.0       3.5
     173.0       1.5
     180.0       2.6
     191.0      95.5
     192.0      10.7
     193.0      31.9
     194.0       3.6
     198.0      55.6
     199.0       6.0
     200.0      36.4
     201.0       3.7
     202.0       6.0
     208.0       6.5
     210.0       2.1
     226.0      18.0
     227.0       2.3
     228.0      13.1
     229.0       1.6
     230.0       3.0
