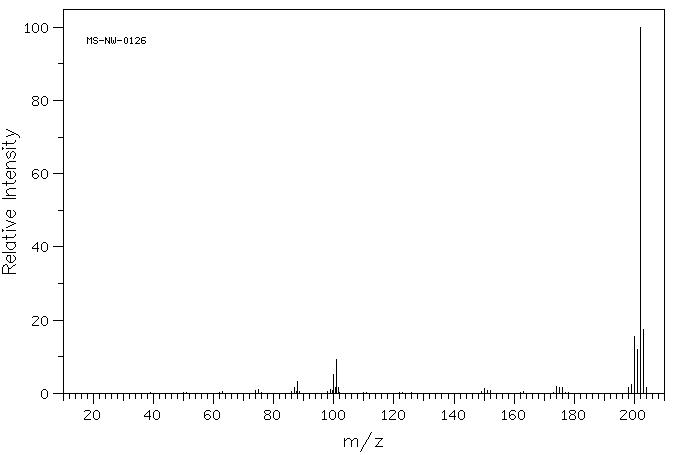

Mass

MS-NW-0126
fluoranthene
C16H10              (Mass of molecular ion:    202)

   Source Temperature: 120 °C
   Sample Temperature:   0 °C
   Direct, 75 eV

      75.0       1.0
      87.0       1.5
      88.0       3.3
      99.0       1.0
     100.0       5.2
     100.5       1.7
     101.0       9.2
     101.5       1.6
     150.0       1.4
     174.0       1.8
     175.0       1.6
     176.0       1.6
     198.0       1.5
     199.0       2.5
     200.0      15.4
     201.0      12.1
     202.0     100.0
     203.0      17.4
     204.0       1.6

Assign. Shift(ppm) A 7.931 B 7.905 C 7.832 D 7.626 E 7.376

     Hz     ppm     Int.

   3173.46   7.941    804
   3172.97   7.940    755
   3168.70   7.929     66
   3166.38   7.923    885
   3165.89   7.922    861
   3163.57   7.916    946
   3160.52   7.909    782
   3158.08   7.903    700
   3155.03   7.895   1000
   3151.25   7.886     93
   3149.90   7.882     70
   3134.89   7.845    793
   3134.40   7.843    740
   3126.59   7.824    944
   3126.10   7.823    859
   3054.81   7.644    768
   3047.85   7.627    792
   3046.51   7.623    729
   3039.67   7.606    560
   2957.15   7.400     59
   2955.93   7.397     79
   2952.15   7.387    960
   2949.10   7.380    682
   2946.66   7.374    711
   2943.48   7.366    879
   2939.82   7.356     73
   2938.48   7.353     49
