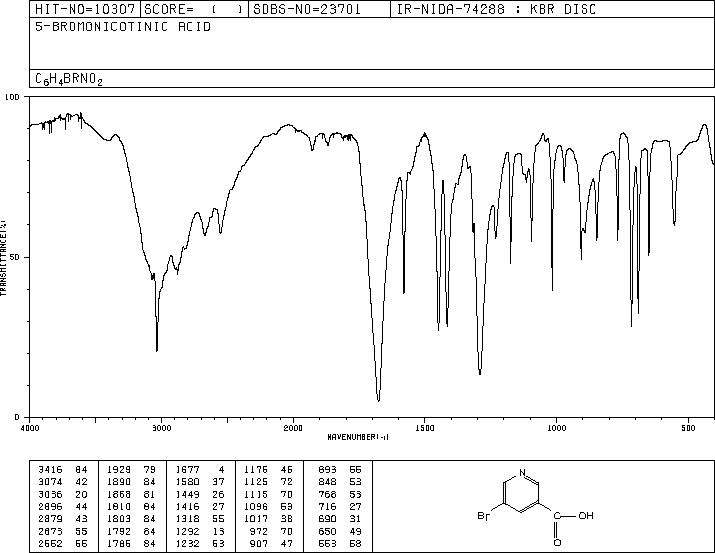

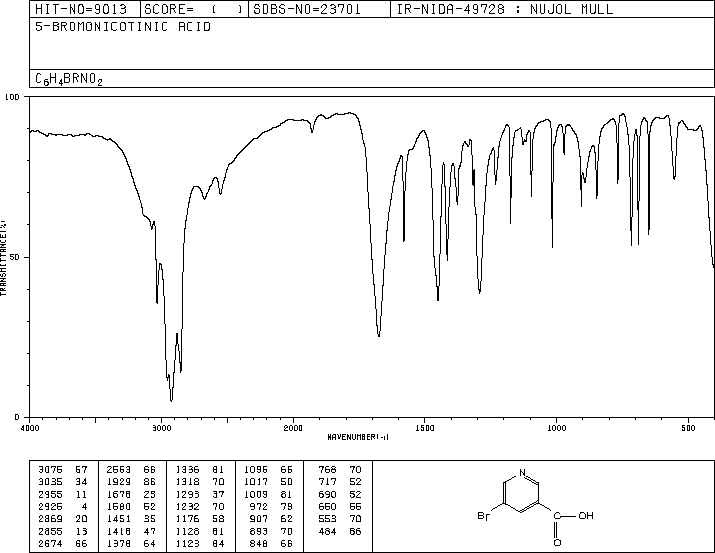

5-溴煙酸(20826-04-4)紅外圖譜(IR1)
分子式:C6H4BrNO2
分子量: 202.01
InChI:InChI=1S/C6H4BrNO2/c7-5-1-4(6(9)10)2-8-3-5/h1-3H,(H,9,10)
InChIKey: FQIUCPGDKPXSLL-UHFFFAOYSA-N
Smiles:C1=NC=C(Br)C=C1C(O)=O
-

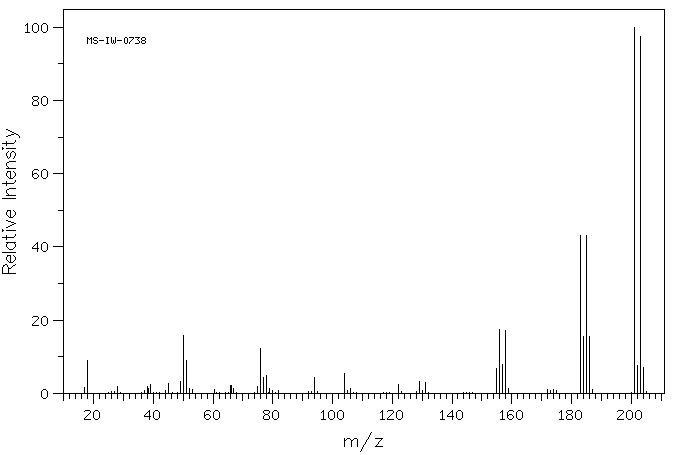

Mass
MS-IW-0738
5-bromonicotinic acid
C6H4BrNO2 (Mass of molecular ion: 201)
Source Temperature: 130 °C
Sample Temperature: 90 °C
Direct, 75 eV
17.0 1.7
18.0 9.1
28.0 1.8
38.0 1.9
38.5 1.2
39.0 2.5
45.0 2.8
49.0 3.2
50.0 15.7
51.0 9.0
52.0 1.4
53.0 1.1
60.5 1.0
66.0 2.1
67.0 1.2
75.0 1.9
76.0 12.2
77.0 4.2
78.0 4.9
79.0 1.2
94.0 4.4
104.0 5.4
106.0 1.2
122.0 2.4
129.0 3.2
131.0 3.1
155.0 6.8
156.0 17.5
157.0 7.9
158.0 17.2
159.0 1.2
172.0 1.1
174.0 1.1
183.0 43.0
184.0 15.5
185.0 43.0
186.0 15.5
187.0 1.0
201.0 100.0
202.0 7.5
203.0 97.5
204.0 7.1
