2-氨基-5-巰基-1,3,4-噻二唑(2349-67-9)紅外圖譜(IR2)
InChI:InChI=1S/C2H3N3S2/c3-1-4-5-2(6)7-1/h(H2,3,4)(H,5,6)
InChIKey: GDGIVSREGUOIJZ-UHFFFAOYSA-N
Smiles:S1C(N)=NNC1=S
-

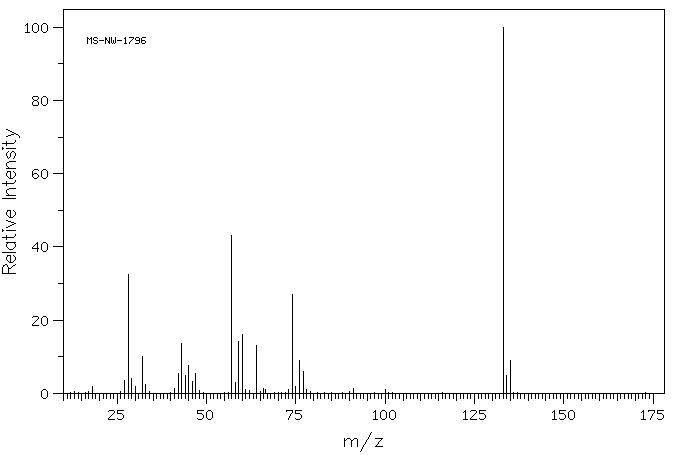

Mass
MS-NW-1796
2-amino-5-mercapto-1,3,4-thiadiazole
C2H3N3S2 (Mass of molecular ion: 133)
Source Temperature: 210 °C
Sample Temperature: 140 °C
Direct, 75 eV
18.0 1.8
27.0 3.5
28.0 32.6
29.0 4.1
30.0 1.8
32.0 10.0
33.0 2.4
41.0 1.3
42.0 5.4
43.0 13.7
44.0 5.0
45.0 7.7
46.0 3.2
47.0 5.4
57.0 43.0
58.0 2.9
59.0 14.2
60.0 16.2
61.0 1.0
64.0 13.2
66.0 1.2
66.5 1.0
73.0 1.1
74.0 27.0
75.0 2.0
76.0 9.0
77.0 5.9
78.0 1.0
91.0 1.3
100.0 1.1
133.0 100.0
134.0 4.9
135.0 9.1
