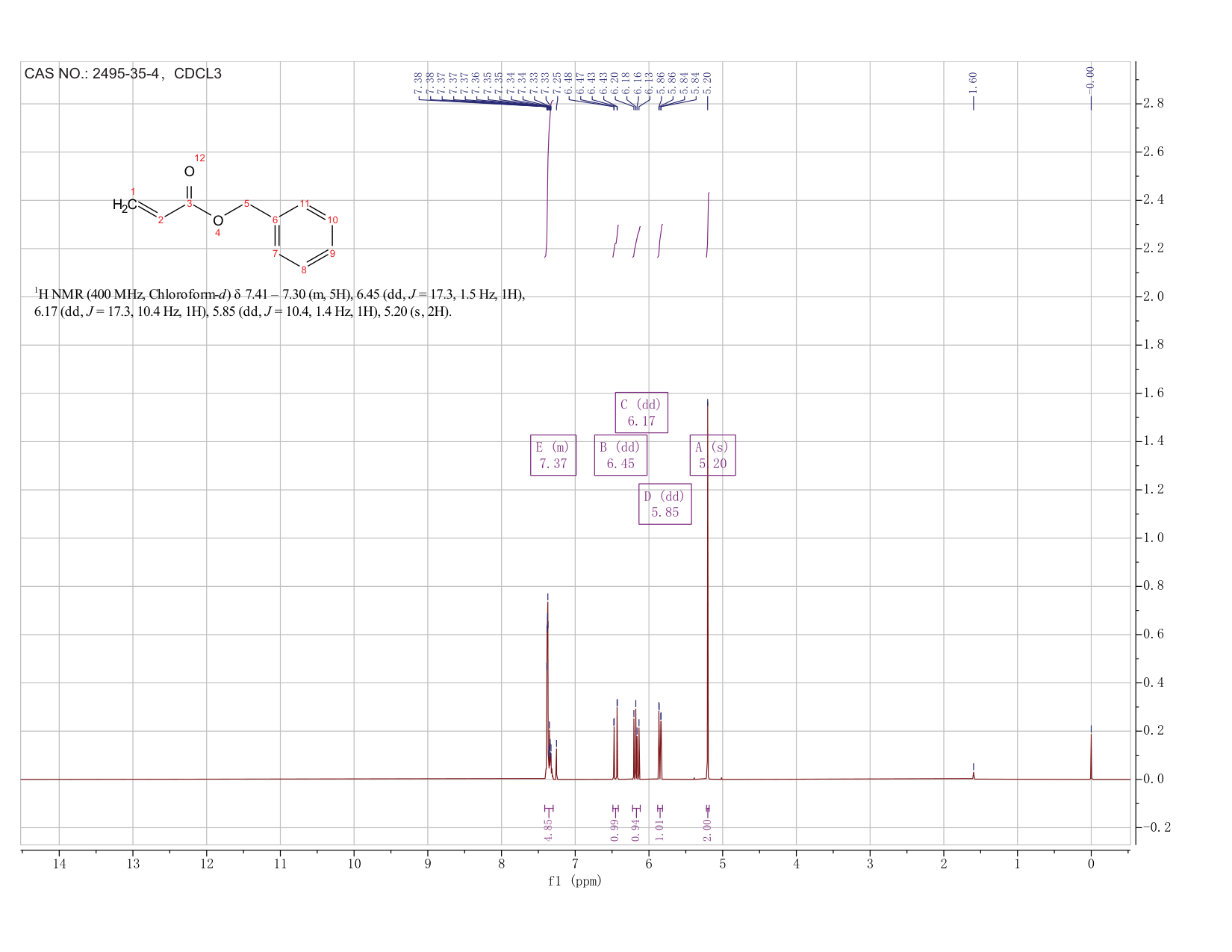

丙烯酸芐酯(2495-35-4)核磁圖(1HNMR)
InChI:InChI=1S/C10H10O2/c1-2-10(11)12-8-9-6-4-3-5-7-9/h2-7H,1,8H2
InChIKey: GCTPMLUUWLLESL-UHFFFAOYSA-N
Smiles:C(OCC1=CC=CC=C1)(=O)C=C
-

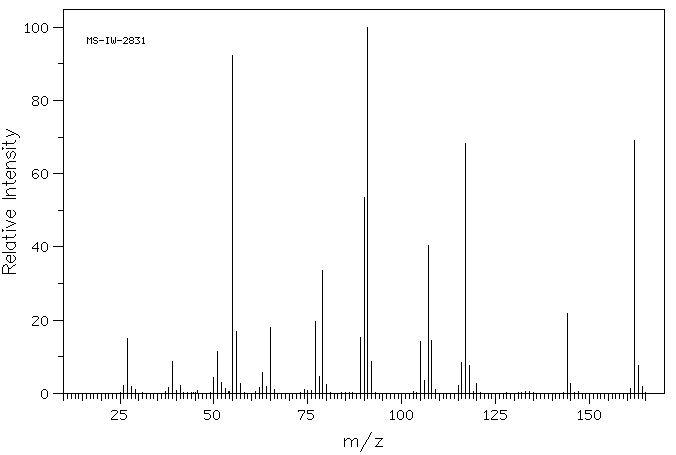

Mass
MS-IW-2831
benzyl acrylate
C10H10O2 (Mass of molecular ion: 162)
Source Temperature: 220 °C
Sample Temperature: 160 °C
Reservoir, 75 eV
26.0 2.1
27.0 15.0
28.0 2.0
29.0 1.1
38.0 1.5
39.0 8.8
41.0 2.2
50.0 4.3
51.0 11.4
52.0 2.9
53.0 1.4
55.0 92.2
56.0 16.8
57.0 2.6
62.0 1.7
63.0 5.7
64.0 1.9
65.0 18.1
66.0 1.0
74.0 1.0
77.0 19.5
78.0 4.7
79.0 33.7
80.0 2.4
89.0 15.2
90.0 53.4
91.0 100.0
92.0 8.6
105.0 14.3
106.0 3.6
107.0 40.4
108.0 14.4
109.0 1.1
115.0 2.2
116.0 8.3
117.0 68.4
118.0 7.5
120.0 2.8
144.0 21.9
145.0 2.7
161.0 1.2
162.0 69.1
163.0 7.6
164.0 2.0
