2537-48-6

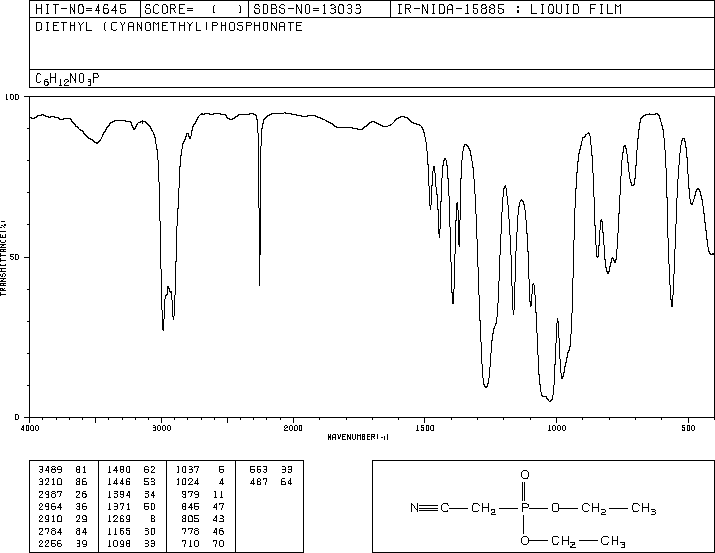

氰甲基磷酸二乙酯(2537-48-6)紅外圖譜(IR1)

產(chǎn)品名稱:氰甲基磷酸二乙酯

CAS:2537-48-6

分子式:C6H12NO3P

分子量: 177.14

InChI:InChI=1S/C6H12NO3P/c1-3-9-11(8,6-5-7)10-4-2/h3-4,6H2,1-2H3

InChIKey: KWMBADTWRIGGGG-UHFFFAOYSA-N

Smiles:P(CC#N)(=O)(OCC)OCC

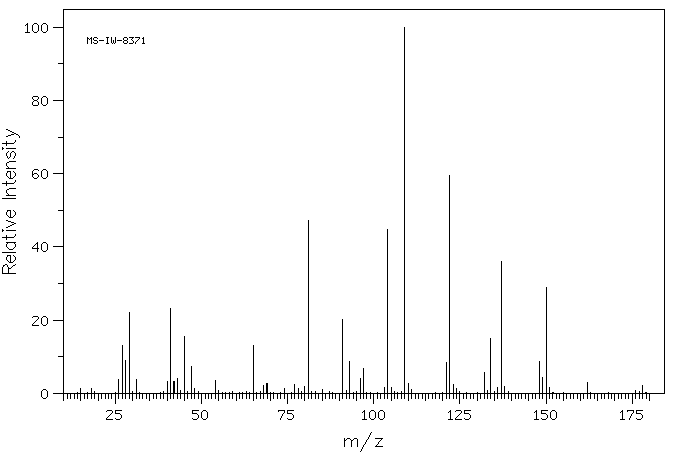

Mass

MS-IW-8371
diethyl (cyanomethyl)phosphonate
C6H12NO3P           (Mass of molecular ion:    177)

   Source Temperature: 210 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      15.0       1.3
      18.0       1.2
      26.0       3.7
      27.0      13.2
      28.0       9.1
      29.0      22.2
      31.0       3.7
      40.0       3.3
      41.0      23.3
      42.0       3.2
      43.0       4.1
      45.0      15.6
      47.0       7.4
      48.0       1.3
      54.0       3.4
      65.0      13.1
      68.0       2.1
      69.0       2.6
      74.0       1.3
      77.0       2.4
      78.0       1.2
      80.0       1.9
      81.0      47.3
      85.0       1.1
      91.0      20.1
      93.0       8.8
      96.0       4.1
      97.0       6.8
     103.0       1.5
     104.0      44.9
     105.0       1.6
     109.0     100.0
     110.0       2.7
     111.0       1.1
     121.0       8.4
     122.0      59.6
     123.0       2.5
     124.0       1.2
     132.0       5.6
     134.0      14.9
     136.0       1.6
     137.0      36.0
     138.0       1.8
     148.0       8.6
     149.0       4.4
     150.0      29.0
     151.0       1.5
     162.0       3.1
     178.0       2.2

90 MHz in CDCl3

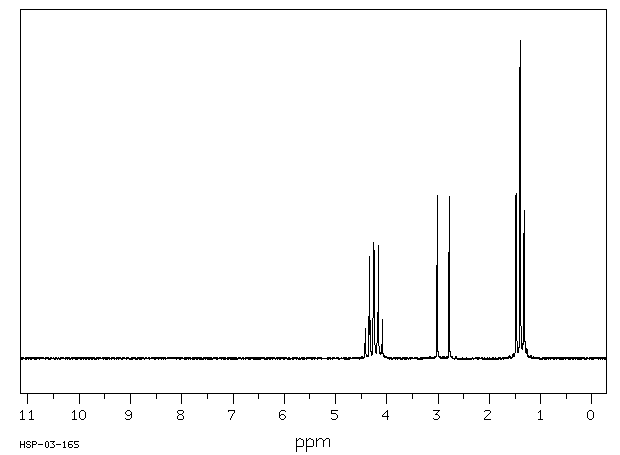

¹H NMR	89.56 MHz
C₆ H₁₂ N O₃ P	0.04 ml : 0.5 ml CDCl₃
diethyl (cyanomethyl)phosphonate

    Assign.     Shift(ppm)

      A             4.247
      B             2.901
      C             1.400

     J(P-31,A)=8.7HZ. J(P-31,B)=20.9HZ.

     Hz     ppm     Int.

    395.75   4.419     95
    388.63   4.340    320
    387.13   4.323    120
    381.56   4.261    365
    379.94   4.243    341
    374.50   4.182    144
    372.88   4.164    355
    365.88   4.086    124
    270.19   3.017    512
    249.25   2.784    510
    132.44   1.479    519
    125.38   1.400   1000
    120.56   1.347     46
    118.25   1.321    466
    113.56   1.268     32

in CDCl3
