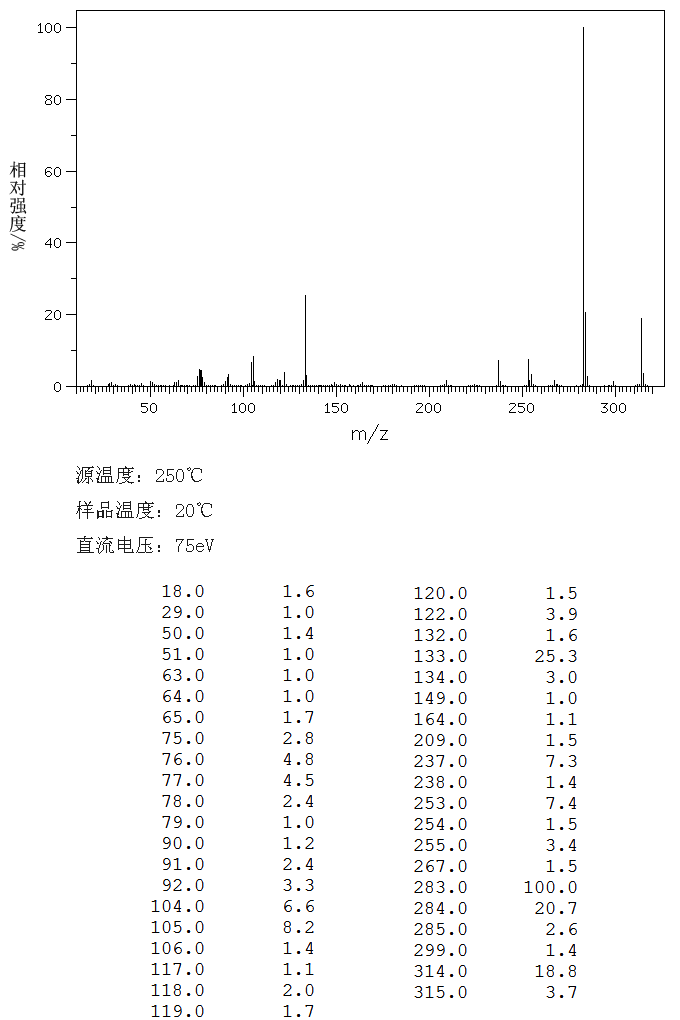

分散紅 1(2872-52-8)質(zhì)譜(MS)
分子式:C16H18N4O3
分子量: 314.34
InChI:InChI=1S/C16H18N4O3/c1-2-19(11-12-21)15-7-3-13(4-8-15)17-18-14-5-9-16(10-6-14)20(22)23/h3-10,21H,2,11-12H2,1H3
InChIKey: FOQABOMYTOFLPZ-UHFFFAOYSA-N
Smiles:C(O)CN(CC)C1=CC=C(N=NC2=CC=C([N+]([O-])=O)C=C2)C=C1
