1,2,4-三氮唑(288-88-0)核磁圖(1HNMR)
InChI:InChI=1S/C2H3N3/c1-3-2-5-4-1/h1-2H,(H,3,4,5)
InChIKey: NSPMIYGKQJPBQR-UHFFFAOYSA-N
Smiles:N1C=NC=N1
-

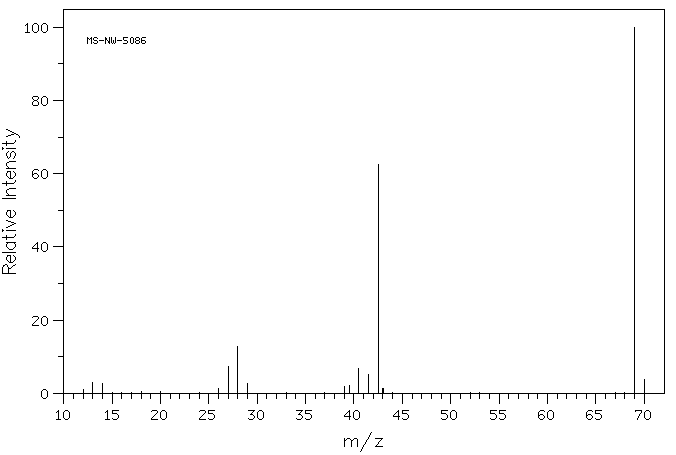

Mass
MS-NW-5086
1,2,4-triazole
C2H3N3 (Mass of molecular ion: 69)
Source Temperature: 260 °C
Sample Temperature: 190 °C
Reservoir, 75 eV
12.0 1.1
13.0 3.0
14.0 2.7
26.0 1.2
27.0 7.4
28.0 12.8
29.0 2.8
39.0 1.8
39.5 2.2
40.5 6.9
41.5 5.1
42.5 62.6
43.0 1.4
69.0 100.0
70.0 3.7
-
| 1H NMR |
300 MHz |
| C2 H3 N3
|
0.040 g : 0.5 ml D2O
|
| 1,2,4-triazole
|
 |
Parameter ppm Hz
D(A) 8.416
|
Hz ppm Int.
2524.80 8.416 1000
