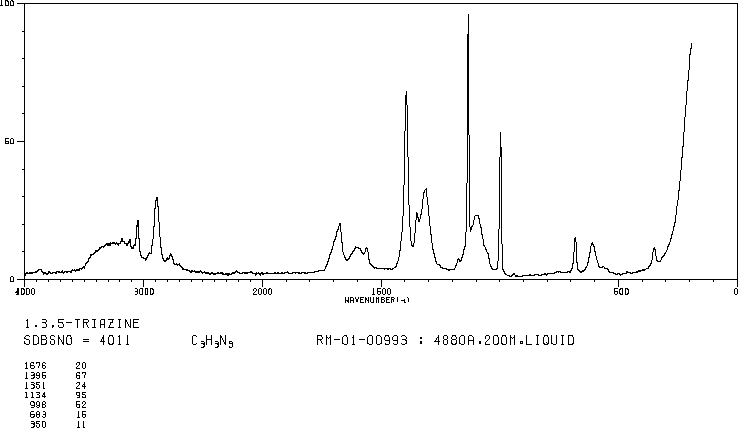

1,3,5-三嗪(290-87-9)Raman光譜
InChI:InChI=1S/C3H3N3/c1-4-2-6-3-5-1/h1-3H
InChIKey: JIHQDMXYYFUGFV-UHFFFAOYSA-N
Smiles:N1=CN=CN=C1
-

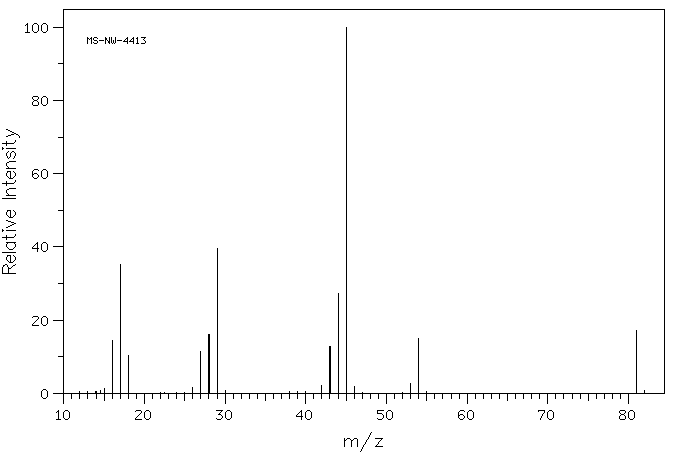

Mass
MS-NW-4413
1,3,5-triazine
C3H3N3 (Mass of molecular ion: 81)
Source Temperature: 260 °C
Sample Temperature: 200 °C
Reservoir, 75 eV
15.0 1.3
16.0 14.4
17.0 35.2
18.0 10.4
26.0 1.7
27.0 11.3
28.0 16.2
29.0 39.7
42.0 2.2
43.0 12.7
44.0 27.2
45.0 100.0
46.0 1.8
53.0 2.8
54.0 15.0
81.0 17.2
-

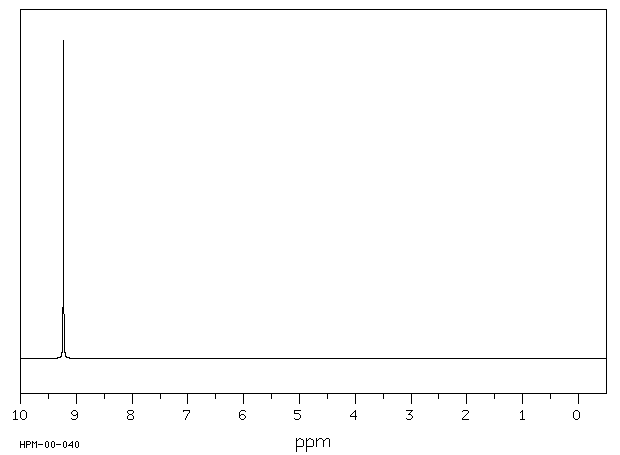

| 1H NMR |
300 MHz |
| C3 H3 N3
|
0.041 g : 0.5 ml CDCl3
|
| 1,3,5-triazine
|
 |
Parameter ppm Hz
D(A) 9.231
|
Hz ppm Int.
2769.30 9.231 1000
