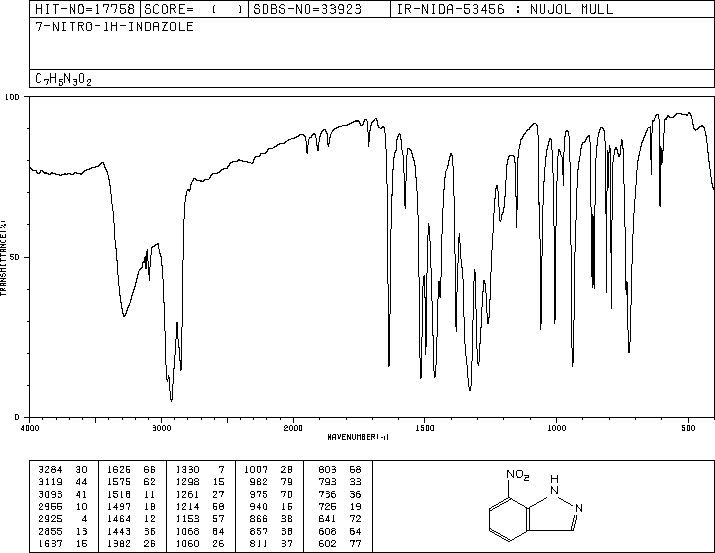

7-硝基吲唑(2942-42-9)紅外圖譜(IR2)
InChI:InChI=1S/C7H5N3O2/c11-10(12)6-3-1-2-5-4-8-9-7(5)6/h1-4H,(H,8,9)
InChIKey: PQCAUHUKTBHUSA-UHFFFAOYSA-N
Smiles:N1C2=C(C=CC=C2[N+]([O-])=O)C=N1
-

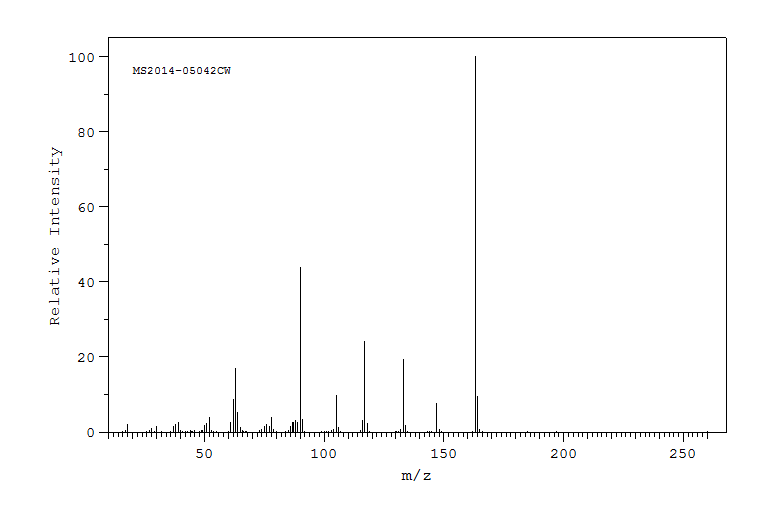

Mass
MS2014-05042CW
7-nitro-1H-indazole
C7H5N3O2 (Mass of molecular ion: 163)
Source Temperature: 245 °C
Sample Temperature: 25 °C
Direct, 70 eV
18.0 2.0
28.0 1.0
30.0 1.6
37.0 1.5
38.0 2.0
39.0 2.6
50.0 1.8
51.0 2.4
52.0 3.8
61.0 2.6
62.0 8.8
63.0 17.0
64.0 5.3
65.0 1.3
75.0 1.5
76.0 1.9
77.0 1.5
78.0 3.8
86.0 1.6
87.0 2.6
88.0 3.2
89.0 2.6
90.0 43.8
91.0 3.4
105.0 9.7
106.0 1.3
116.0 3.1
117.0 24.0
118.0 2.3
133.0 19.2
134.0 1.8
147.0 7.7
163.0 100.0
164.0 9.4
