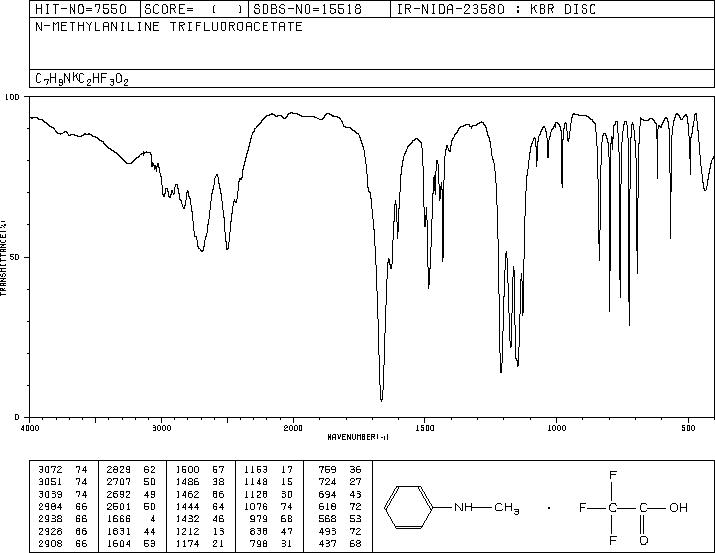

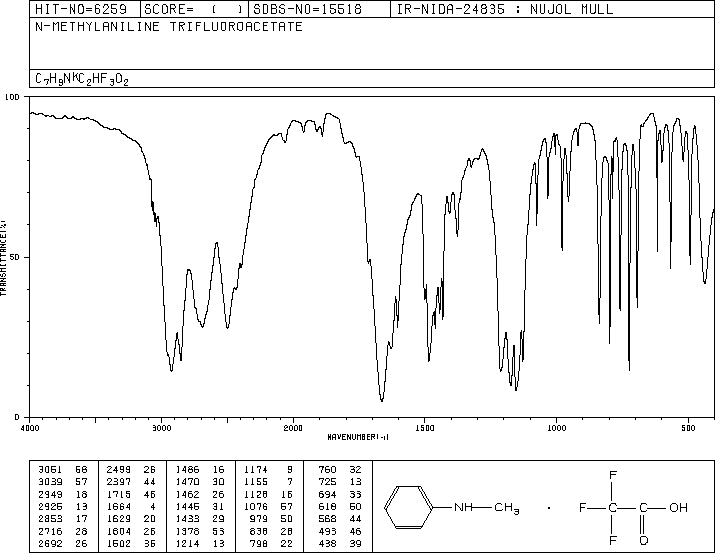

氮甲基苯胺三氟乙酸(29885-95-8)紅外圖譜(IR2)
分子式:C9H10F3NO2
分子量: 221.18
InChI:InChI=1S/C7H9N.C2HF3O2/c1-8-7-5-3-2-4-6-7;3-2(4,5)1(6)7/h2-6,8H,1H3;(H,6,7)
InChIKey: TXXJGCVOHDSYBC-UHFFFAOYSA-N
Smiles:C(F)(F)(F)C(=O)O.C1(NC)=CC=CC=C1
400 MHz in DMSO-d6
400 MHz in D2O
-

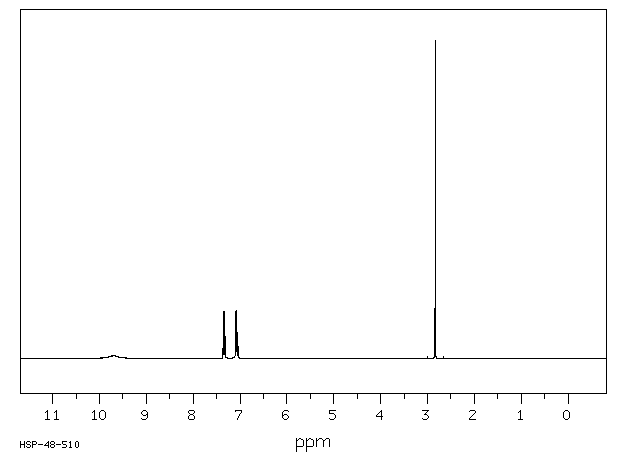

| 1H NMR |
399.65 MHz |
| C7 H9 N
|
0.035 g : 0.5 ml DMSO-d6
|
| N-methylaniline trifluoroacetate
|
 |
Assign. Shift(ppm)
A 9.7
B 7.340
C 7.08
D 7.05
E 2.835
|
Hz ppm Int.
2944.03 7.367 21
2942.20 7.362 98
2940.06 7.357 37
2934.88 7.344 148
2933.65 7.341 148
2931.67 7.336 28
2928.16 7.327 48
2926.18 7.322 130
2924.04 7.317 21
2835.85 7.096 110
2834.93 7.094 147
2827.30 7.075 151
2826.39 7.073 148
2819.21 7.055 80
2812.81 7.039 27
2811.74 7.036 37
1133.12 2.836 1000
-
| 1H NMR |
399.65 MHz |
| C7 H9 N
|
0.031 g : 0.5 ml D2O
|
| N-methylaniline trifluoroacetate
|
|
Assign. Shift(ppm)
A 7.571
B 7.510
C 7.447
D 3.077
SOLVENT PEAK REMOVED
|
Hz ppm Int.
3034.79 7.594 76
3033.08 7.590 49
3027.71 7.576 198
3026.25 7.573 140
3021.36 7.561 89
3019.78 7.557 170
3007.57 7.526 100
3006.35 7.523 81
3002.32 7.513 43
3000.24 7.508 113
2997.68 7.501 37
2993.90 7.492 29
2992.80 7.489 39
2980.22 7.458 173
2978.76 7.454 241
2970.83 7.434 161
1229.86 3.078 1000
