3027-21-2

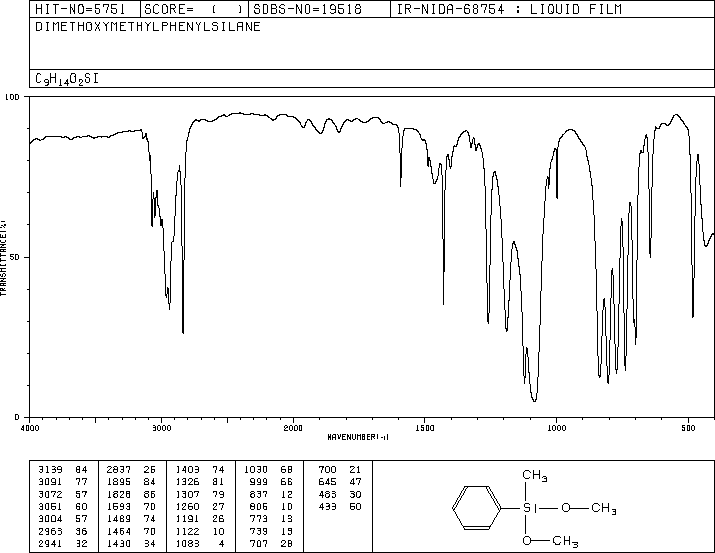

甲基苯基二甲氧基硅烷(3027-21-2)紅外圖譜(IR1)

產(chǎn)品名稱:甲基苯基二甲氧基硅烷

CAS:3027-21-2

分子式:C9H14O2Si

分子量: 182.29

InChI:InChI=1S/C9H14O2Si/c1-10-9(11-2)12-8-6-4-3-5-7-8/h3-7,9H,12H2,1-2H3

InChIKey: FNLUYENEAPLWBT-UHFFFAOYSA-N

Smiles:C1([SiH2]C(OC)OC)=CC=CC=C1

¹HNMR

¹³CNMR

IR1

Mass

MS-IW-7190
dimethoxymethylphenylsilane
C9H14O2Si           (Mass of molecular ion:    182)

   Source Temperature: 220 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      43.0       1.6
      45.0       2.7
      51.0       1.5
      59.0       9.6
      74.0       1.3
      75.0       6.8
      77.0       1.5
      78.0       1.1
      83.5       1.5
      91.0      15.4
      92.0       1.4
     104.0       1.0
     105.0       7.4
     107.0       7.8
     121.0       5.0
     137.0      28.4
     138.0       3.7
     139.0       1.2
     151.0       3.6
     167.0     100.0
     168.0      14.0
     169.0       4.6
     182.0      11.9
     183.0       1.8

400 MHz in CDCl3

¹H NMR	399.65 MHz
C₉ H₁₄ O₂ Si	0.05 ml : 0.5 ml CDCl₃
dimethoxymethylphenylsilane

    Assign.     Shift(ppm)

      A             7.619
      B             7.41
      C             7.37
      D             3.555
      E             0.350

     CONFIRMED BY LAOCN PROGRAM

     Hz     ppm     Int.

   3049.32   7.630    120
   3047.73   7.626    139
   3046.39   7.623     69
   3045.78   7.622     54
   3043.70   7.616     51
   3042.60   7.614     55
   3041.75   7.612    128
   3039.79   7.607    136
   2962.40   7.413     57
   2961.91   7.412     64
   2959.11   7.405     37
   2957.28   7.400     74
   2955.44   7.396    122
   2953.61   7.391    152
   2953.13   7.390    137
   2952.39   7.388     90
   2951.54   7.386     80
   2948.36   7.378     55
   2947.39   7.375     74
   2946.66   7.374     75
   2946.04   7.372    121
   2945.43   7.371     98
   2944.46   7.368     41
   2939.82   7.356     49
   2937.26   7.350     31
   1422.73   3.560    192
   1420.78   3.556   1000
   1418.70   3.550    170
    143.55   0.360     55
    140.01   0.351    719
    136.35   0.342     50

in CDCl3
