3121-61-7

2-丙烯酸-2-甲氧基乙酯(3121-61-7)質(zhì)譜(MS)

產(chǎn)品名稱:2-丙烯酸-2-甲氧基乙酯

CAS:3121-61-7

分子式:C6H10O3

分子量: 130.14

InChI:InChI=1S/C6H10O3/c1-3-6(7)9-5-4-8-2/h3H,1,4-5H2,2H3

InChIKey: HFCUBKYHMMPGBY-UHFFFAOYSA-N

Smiles:C(OCCOC)(=O)C=C

¹HNMR

¹³CNMR

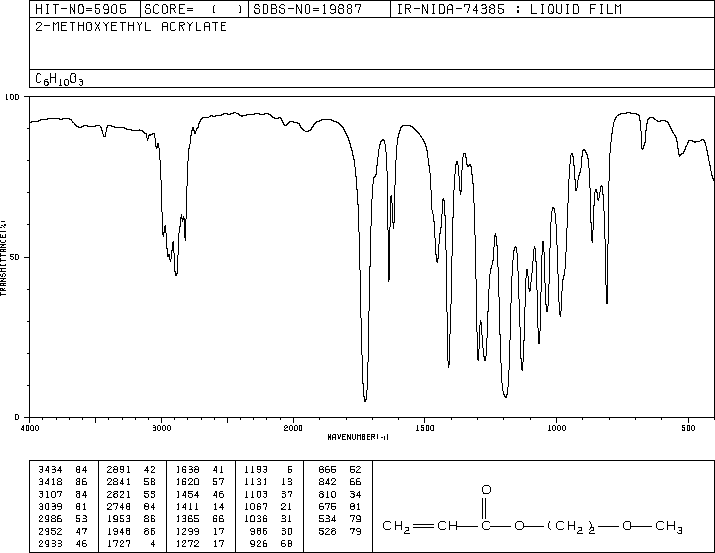

IR1

Mass

MS-IW-9195
2-methoxyethyl acrylate
C6H10O3             (Mass of molecular ion:    130)

   Source Temperature: 220 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      15.0       5.4
      26.0       3.2
      27.0      22.6
      28.0       5.7
      29.0       8.8
      31.0       5.2
      42.0       1.6
      43.0       6.7
      45.0      65.2
      46.0       1.5
      55.0     100.0
      56.0       3.8
      57.0       1.0
      58.0      72.9
      59.0       4.1
      70.0       3.9
      71.0       2.5
      72.0       1.2
      85.0       2.6
      87.0       2.7

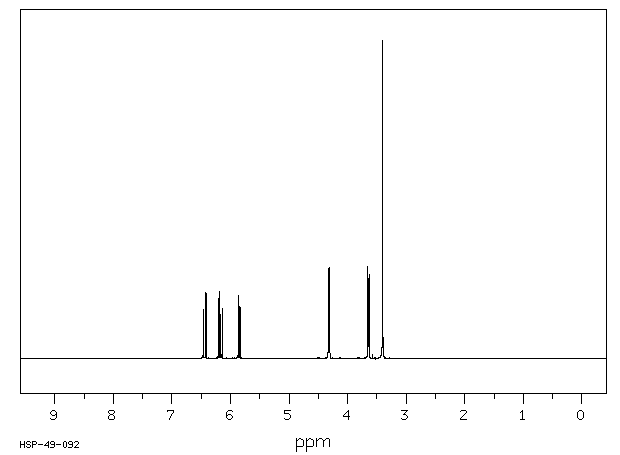

400 MHz in CDCl3

¹H NMR	399.65 MHz
C₆ H₁₀ O₃	0.05 ml : 0.5 ml CDCl₃
2-methoxyethyl acrylate

    Assign.     Shift(ppm)

      A             6.437
      B             6.175
      C             5.852
      D             4.317
      E             3.642
      F             3.401

     Hz     ppm     Int.

   2583.50   6.465    155
   2582.03   6.461    155
   2566.16   6.422    208
   2564.70   6.418    206
   2480.83   6.208    187
   2470.46   6.182    210
   2463.50   6.165    138
   2453.13   6.139    158
   2344.24   5.866    198
   2342.77   5.863    189
   2333.86   5.840    165
   2332.40   5.837    162
   1730.10   4.330    283
   1727.54   4.323     95
   1726.56   4.321    144
   1725.34   4.318    252
   1724.00   4.314    140
   1723.02   4.312     91
   1720.58   4.306    286
   1460.21   3.654    290
   1457.64   3.648     92
   1456.79   3.646    139
   1455.44   3.642    253
   1454.10   3.639    135
   1453.25   3.637     87
   1450.68   3.630    264
   1359.38   3.402   1000
   1356.57   3.395     59

in CDCl3
