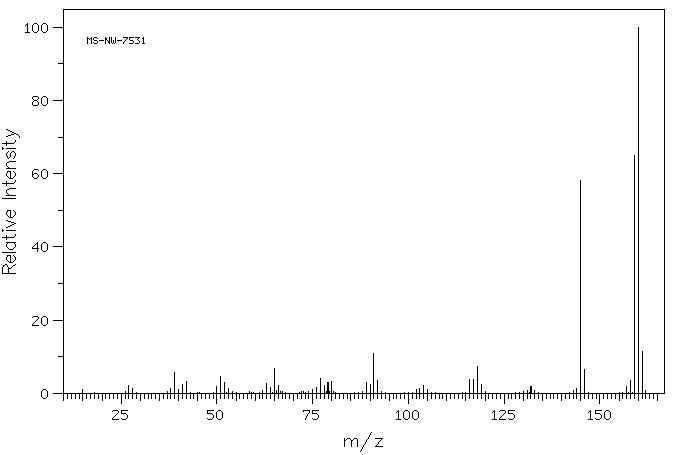

Mass

MS-NW-7531
2,5,6-trimethylbenzimidazole
C10H12N2            (Mass of molecular ion:    160)

   Source Temperature: 170 °C
   Sample Temperature: 130 °C
   Direct, 75 eV

      15.0       1.0
      27.0       2.1
      28.0       1.3
      38.0       1.2
      39.0       5.8
      40.0       1.0
      41.0       2.3
      42.0       3.3
      50.0       2.0
      51.0       4.6
      52.0       3.1
      53.0       1.3
      63.0       2.8
      64.0       1.7
      65.0       6.9
      66.0       2.2
      75.0       1.0
      76.0       1.6
      77.0       4.1
      78.0       2.1
      79.0       2.9
      80.0       3.2
      89.0       3.0
      90.0       2.3
      91.0      10.9
      92.0       3.5
     102.0       1.1
     103.0       1.4
     104.0       2.2
     105.0       1.1
     116.0       3.8
     117.0       3.9
     118.0       7.4
     119.0       2.5
     132.0       1.8
     144.0       1.4
     145.0      58.1
     146.0       6.4
     157.0       1.9
     158.0       3.6
     159.0      64.9
     160.0     100.0
     161.0      11.5

Assign. Shift(ppm) A 12. B 7.22 C 2.444 D 2.273

     Hz     ppm     Int.

    646.88   7.223    282
    227.73   2.543     30
    218.95   2.445    837
    215.43   2.406     39
    212.79   2.376     27
    211.91   2.367     28
    210.84   2.355     31
    210.06   2.346     33
    203.61   2.274   1000
