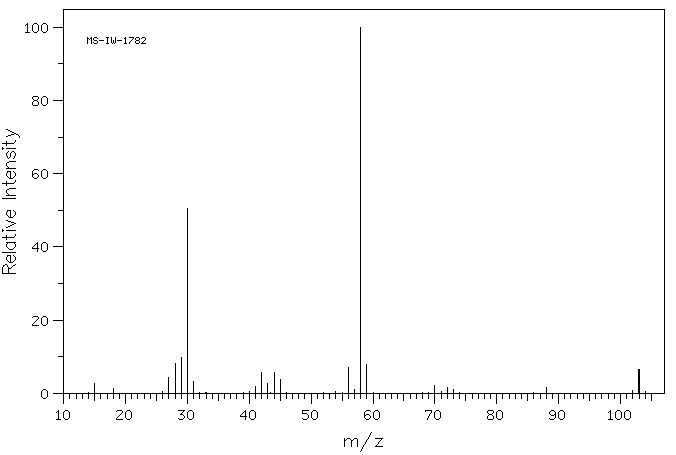

Mass

MS-IW-1782
2-methoxydiethylamine
C5H13NO             (Mass of molecular ion:    103)

   Source Temperature: 240 °C
   Sample Temperature: 160 °C
   Reservoir, 75 eV

      15.0       2.8
      18.0       1.4
      27.0       4.3
      28.0       8.1
      29.0       9.8
      30.0      50.6
      31.0       3.3
      41.0       1.8
      42.0       5.7
      43.0       2.7
      44.0       5.6
      45.0       3.7
      56.0       7.1
      57.0       1.1
      58.0     100.0
      59.0       8.0
      70.0       2.1
      72.0       1.6
      73.0       1.0
      88.0       1.6
     103.0       6.5

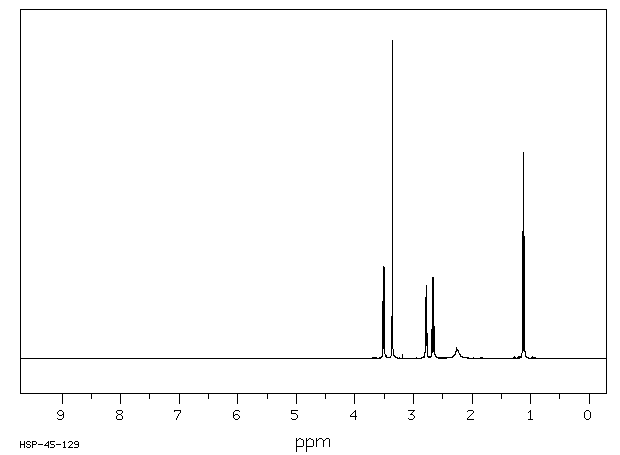

Assign. Shift(ppm) A 3.504 B 3.360 C 2.782 D 2.664 E 2.3 F 1.119

     Hz     ppm     Int.

   1405.76   3.518    278
   1404.05   3.514     47
   1400.63   3.505    289
   1396.97   3.496     47
   1395.39   3.492    287
   1346.19   3.369     69
   1343.14   3.361   1000
   1339.11   3.351     51
   1337.04   3.346     27
   1117.07   2.796    192
   1111.82   2.782    228
   1106.69   2.770    179
   1075.81   2.692     92
   1068.60   2.674    253
   1061.40   2.656    256
   1054.32   2.639    100
    901.98   2.257     34
    454.59   1.138    401
    447.39   1.120    647
    440.19   1.102    382
