3558-60-9

甲基苯乙基醚(3558-60-9)核磁圖(¹³CNMR)

產(chǎn)品名稱:甲基苯乙基醚

CAS:3558-60-9

分子式:C9H12O

分子量: 136.19

InChI:InChI=1S/C9H12O/c1-10-8-7-9-5-3-2-4-6-9/h2-6H,7-8H2,1H3

InChIKey: CQLYXIUHVFRXLT-UHFFFAOYSA-N

Smiles:C1(CCOC)=CC=CC=C1

¹HNMR

¹³CNMR

IR1

Mass

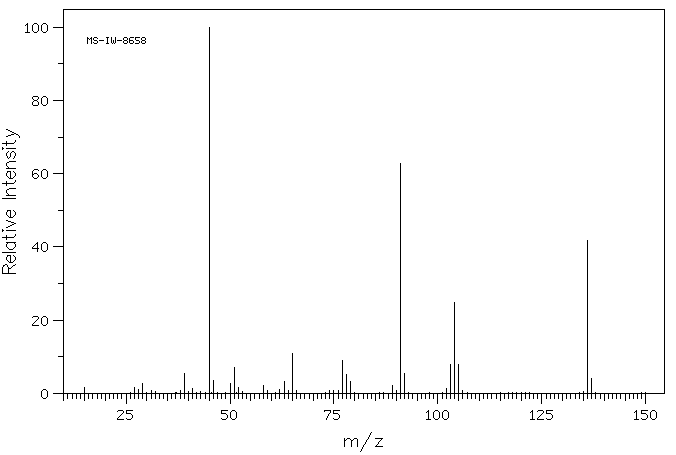

MS-IW-8658
(2-methoxyethyl)benzene
C9H12O              (Mass of molecular ion:    136)

   Source Temperature: 220 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      15.0       1.7
      27.0       1.7
      28.0       1.0
      29.0       2.8
      39.0       5.4
      41.0       1.2
      45.0     100.0
      46.0       3.5
      50.0       2.7
      51.0       7.2
      52.0       1.7
      58.0       2.2
      62.0       1.0
      63.0       3.3
      65.0      10.9
      77.0       8.9
      78.0       5.2
      79.0       3.2
      89.0       2.2
      91.0      62.8
      92.0       5.4
     102.0       1.2
     103.0       8.0
     104.0      24.8
     105.0       7.9
     136.0      41.9
     137.0       4.1

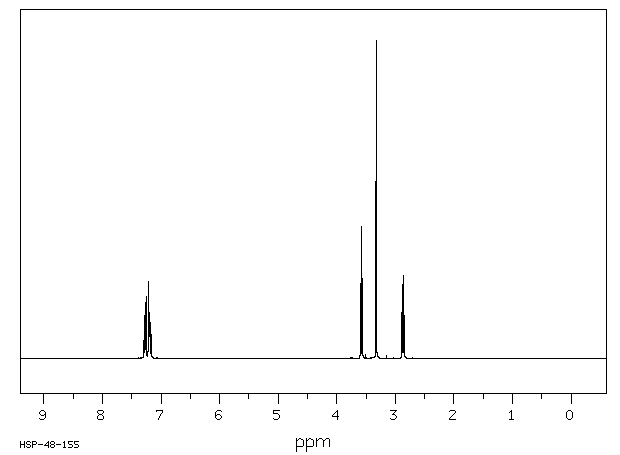

400 MHz in CDCl3

¹H NMR	399.65 MHz
C₉ H₁₂ O	0.05 ml : 0.5 ml CDCl₃
(2-methoxyethyl)benzene

    Assign.     Shift(ppm)

      A             7.266
      B             7.20
      C             7.19
      D             3.577
      E             3.327
      F             2.866

     Hz     ppm     Int.

   2913.94   7.292     58
   2912.84   7.289     84
   2911.25   7.285     42
   2906.49   7.273    148
   2905.52   7.271    177
   2904.54   7.268    138
   2901.86   7.262     31
   2900.39   7.258     75
   2898.32   7.253    194
   2882.08   7.212    236
   2881.59   7.211    243
   2879.03   7.204    126
   2876.10   7.197    101
   2874.88   7.194    146
   2874.27   7.192    136
   2873.41   7.190    126
   2870.73   7.184    112
   2868.41   7.178     34
   2864.99   7.169     75
   2863.65   7.166     45
   1436.77   3.596    237
   1429.57   3.578    416
   1422.49   3.560    252
   1329.96   3.328   1000
   1152.83   2.885    148
   1145.75   2.867    260
   1138.55   2.849    137

in CDCl3
