全氟丁基磺酰氟(375-72-4)紅外圖譜(IR1)
InChI:InChI=1S/C4F10O2S/c5-1(6,3(9,10)11)2(7,8)4(12,13)17(14,15)16
InChIKey: LUYQYZLEHLTPBH-UHFFFAOYSA-N
Smiles:C(F)(F)(S(F)(=O)=O)C(F)(F)C(F)(F)C(F)(F)F
-

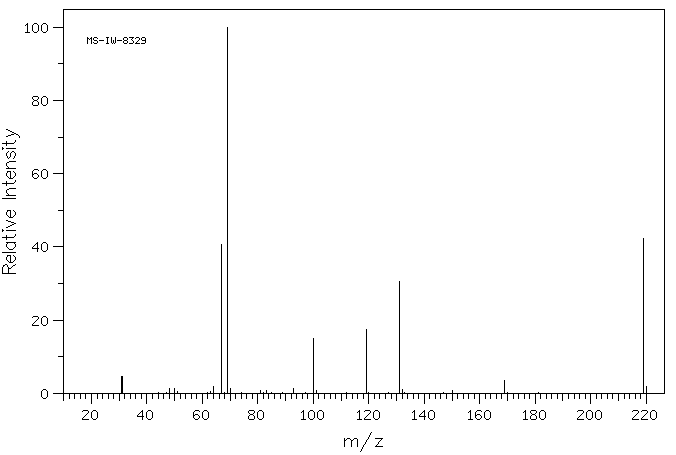

Mass
MS-IW-8329
1,1,2,2,3,3,4,4,4-nonafluoro-1-butanesulfonyl fluoride
C4F10O2S (Mass of molecular ion: 302)
Source Temperature: 200 °C
Sample Temperature: 150 °C
Reservoir, 75 eV
31.0 4.5
48.0 1.2
50.0 1.3
64.0 1.9
67.0 40.7
69.0 100.0
70.0 1.3
93.0 1.4
100.0 14.9
119.0 17.4
131.0 30.5
132.0 1.0
169.0 3.5
219.0 42.3
220.0 1.8
