對(duì)苯二異硫氰酸酯(4044-65-9)核磁圖(1HNMR)
InChI:
InChIKey:
Smiles:
-

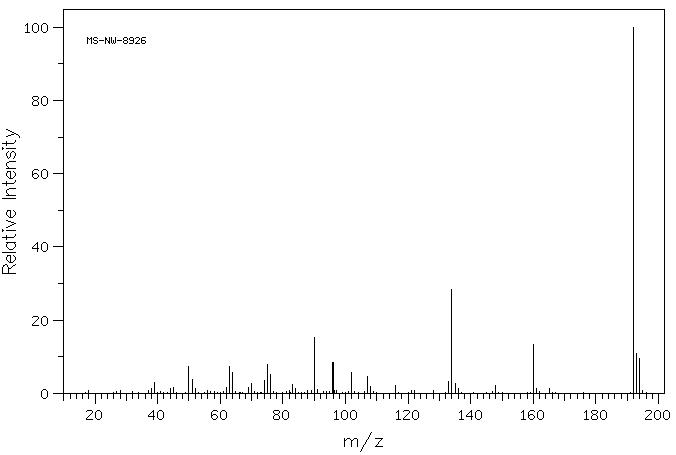

Mass
MS-NW-8926
p-phenylene diisothiocyanate
C8H4N2S2 (Mass of molecular ion: 192)
Source Temperature: 270 °C
Sample Temperature: 150 °C
Reservoir, 75 eV
38.0 1.3
39.0 3.0
44.0 1.3
45.0 1.5
50.0 7.3
51.0 3.9
52.0 1.2
62.0 1.6
63.0 7.3
64.0 5.7
69.0 1.7
70.0 2.7
74.0 3.4
75.0 7.8
76.0 5.2
83.0 2.3
84.0 1.2
90.0 15.2
91.0 1.1
96.0 8.5
102.0 5.6
107.0 4.6
108.0 1.8
116.0 2.1
133.0 3.2
134.0 28.4
135.0 2.6
136.0 1.4
148.0 2.1
160.0 13.4
161.0 1.4
165.0 1.3
192.0 100.0
193.0 11.0
194.0 9.5
-
| 1H NMR |
300 MHz |
| C8 H4 N2 S2
|
0.037 g : 0.5 ml CDCl3
|
| p-phenylene diisothiocyanate
|
 |
Parameter ppm Hz
D(A) 7.197
|
Hz ppm Int.
2159.10 7.197 1000
