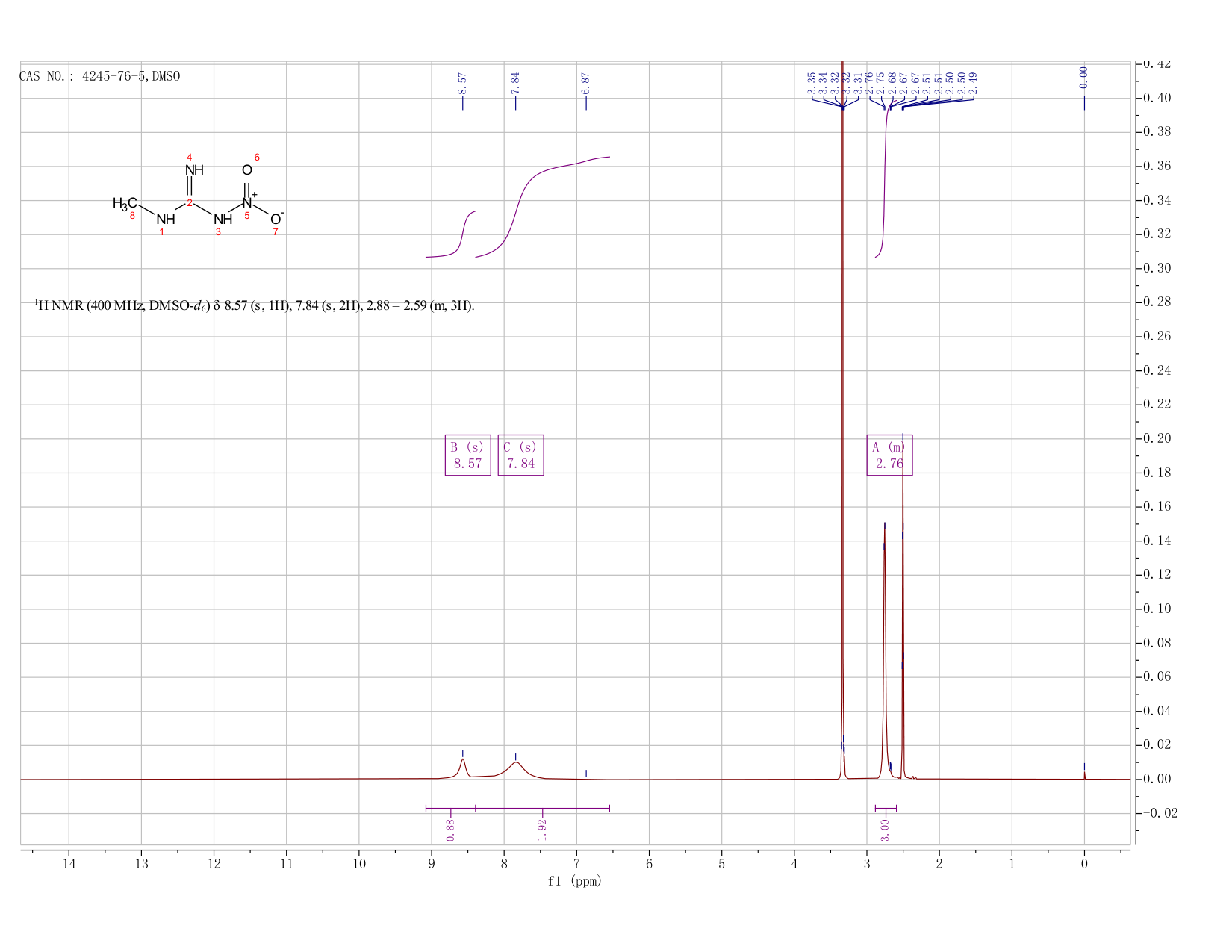

1-甲基-3-硝基胍(4245-76-5)核磁圖(1HNMR)
InChI:InChI=1S/C2H6N4O2/c1-4-2(3)5-6(7)8/h1H3,(H3,3,4,5)
InChIKey: XCXKNNGWSDYMMS-UHFFFAOYSA-N
Smiles:N(C)C(=N)N[N+]([O-])=O
-

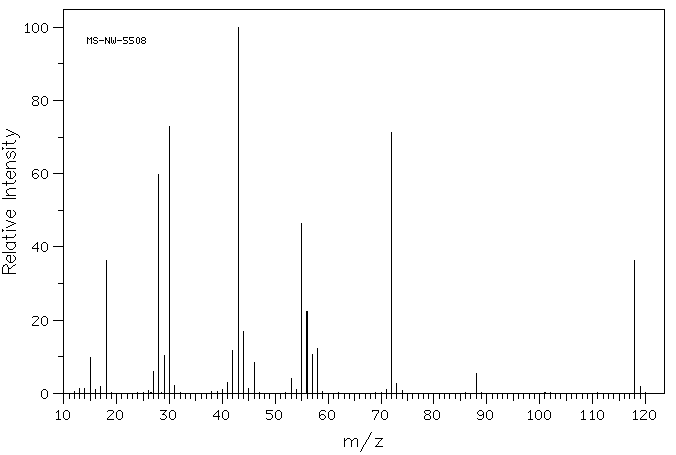

Mass
MS-NW-5508
1-methyl-3-nitroguanidine
C2H6N4O2 (Mass of molecular ion: 118)
Source Temperature: 170 °C
Sample Temperature: 120 °C
Direct, 75 eV
13.0 1.3
14.0 1.3
15.0 9.8
16.0 1.0
17.0 1.9
18.0 36.4
27.0 5.9
28.0 59.9
29.0 10.3
30.0 72.8
31.0 2.2
40.0 1.1
41.0 2.9
42.0 11.8
43.0 100.0
44.0 16.8
45.0 1.2
46.0 8.3
53.0 4.0
54.0 1.1
55.0 46.3
56.0 22.4
57.0 10.5
58.0 12.2
71.0 1.1
72.0 71.3
73.0 2.7
88.0 5.4
118.0 36.2
119.0 1.9
