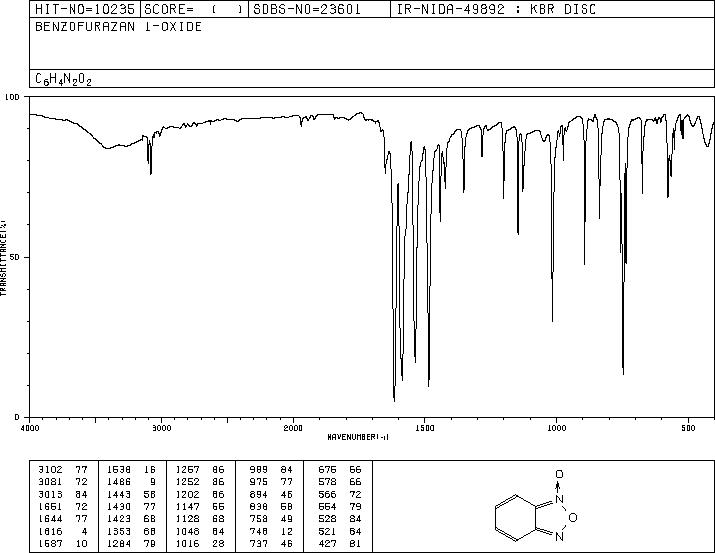

苯并呋咱(480-96-6)紅外圖譜(IR2)
InChI:InChI=1S/C6H4N2O2/c9-8-6-4-2-1-3-5(6)7-10-8/h1-4H
InChIKey: OKEAMBAZBICIFP-UHFFFAOYSA-N
Smiles:[N+]1([O-])=C2C=CC=CC2=NO1
-
Mass
MS-IW-0682
benzofurazan 1-oxide
C6H4N2O2 (Mass of molecular ion: 136)
Source Temperature: 240 °C
Sample Temperature: 160 °C
Reservoir, 75 eV
27.0 5.8
28.0 5.2
30.0 14.9
37.0 3.8
38.0 3.5
39.0 4.9
49.0 1.3
50.0 32.4
51.0 55.7
52.0 12.1
61.0 1.6
62.0 2.1
63.0 5.7
64.0 4.0
73.0 1.3
74.0 7.6
75.0 7.1
76.0 42.2
77.0 5.2
78.0 20.8
79.0 1.4
90.0 8.5
104.0 1.2
106.0 4.5
120.0 7.3
136.0 100.0
137.0 8.1
138.0 1.3
